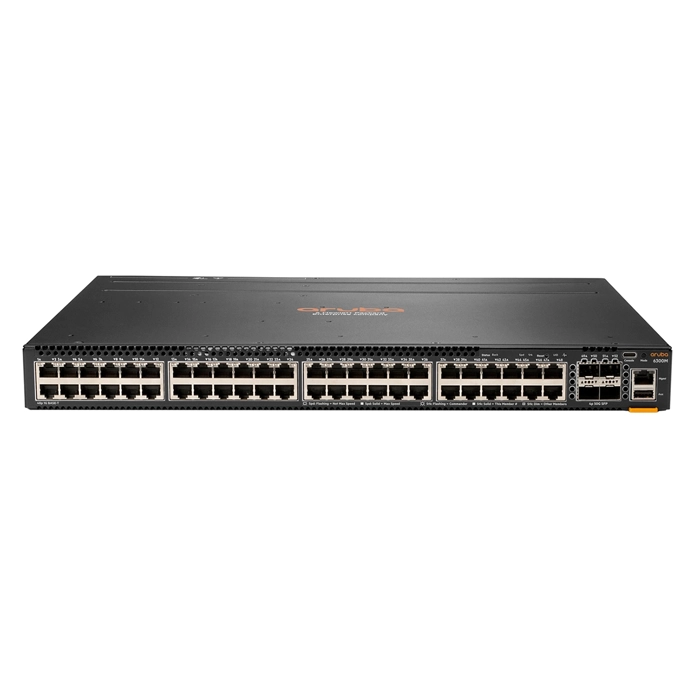

HP JL663A#ABA | Aruba CX 6300M Series 48 x 1000Base-T RJ-45 and 4 x 50GbE SFP56 Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
$6,681.09
$6,413.85Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL663A#ABA | Aruba CX 6300M Series 48 x 1000Base-T RJ-45 and 4 x 50GbE SFP56 Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
- HP Aruba CX 6300M 48-port 1GbE and 4-port SFP56 (JL663A#ABA) shows up a lot in shortlists for teams scaling out AI/ML training clusters that need fast east-west links, and for good reason. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Port-wise, it offers 52 total network ports, laid out as 48xGigabit EthernetRJ-45 and 4x50 Gigabit EthernetSFP56,Uplink/Stacking, topping out at 50GbE per port. On top of that, it has SFP56 expansion for uplinks. A built-in 32 (GB) of flash storage holds firmware images and config backups on the switch itself. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air front-and-side-to-back airflow, so it fits cleanly next to existing gear. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP56 covers both copper and fiber runs. Buy the HP Aruba CX 6300M 48-port 1GbE and 4-port SFP56 from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
- UPC: 190017339481
Technical Documents:
General Information:
| Product Line | CX 6300M |
|---|---|
| Model | 6300M 48-port 1GbE and 4-port SFP56 |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 52 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP56 |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 32 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 15.2 Inches |
| Weight | 5.51 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
