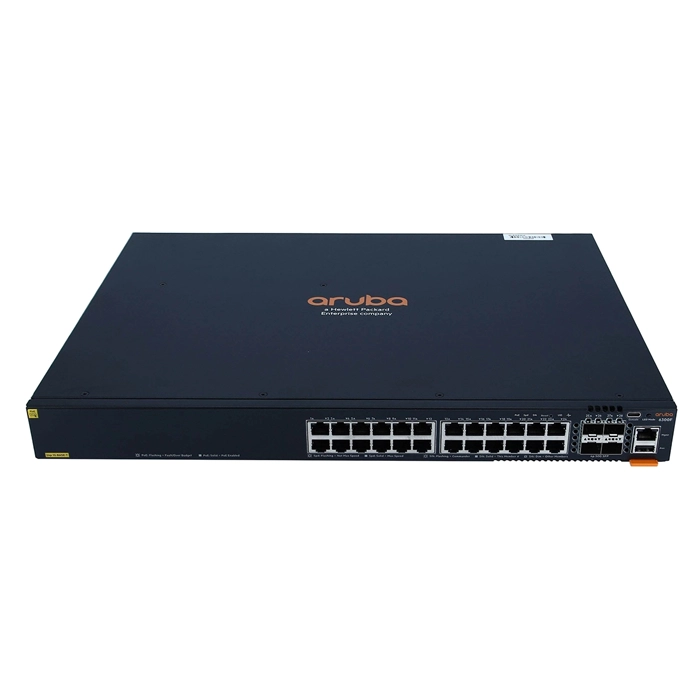

HP JL666A | Aruba CX 6300F Series 24 x 1000Base-T RJ-45 Class4 PoE and 4 x 50GbE SFP56 Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
$2,878.60
$2,705.88Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL666A | Aruba CX 6300F Series 24 x 1000Base-T RJ-45 Class4 PoE and 4 x 50GbE SFP56 Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
- HP Aruba CX 6300F 24-port 1GbE Class 4 PoE and 4-port SFP56 (JL666A) is a solid pick for campus networks and multi-floor offices with dense wireless AP and VoIP deployments that don't want to overthink the network layer. It's a good match for IT teams standardizing wiring closets across a campus, schools and offices deploying wireless APs at scale, and security teams running IP camera networks that need power and data on one cable. Facilities with virtualization or NAS traffic riding the same switch will also benefit from the extra headroom. Wiring is handled by 28 total network ports, laid out as 24xGigabit EthernetRJ-45,Class4 PoE and 4x50 Gigabit EthernetSFP56,Uplink/Stacking, topping out at 50GbE per port. PoE support means powered endpoints - APs, cameras, phones - plug straight into the switch without extra adapters. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. It rounds this out with SFP56 expansion for uplinks. Onboard flash storage of 32 (GB) keeps firmware and config backups local to the switch. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air front-and-side-to-back airflow, so it fits cleanly next to existing gear. Buy the HP Aruba CX 6300F 24-port 1GbE Class 4 PoE and 4-port SFP56 from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
- UPC: 190017340524
Technical Documents:
General Information:
| Product Line | CX 6300F |
|---|---|
| Model | 6300F 24-port 1GbE Class 4 PoE and 4-port SFP56 |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 28 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP56 |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 32 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 12.9 Inches |
| Weight | 4.95 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
