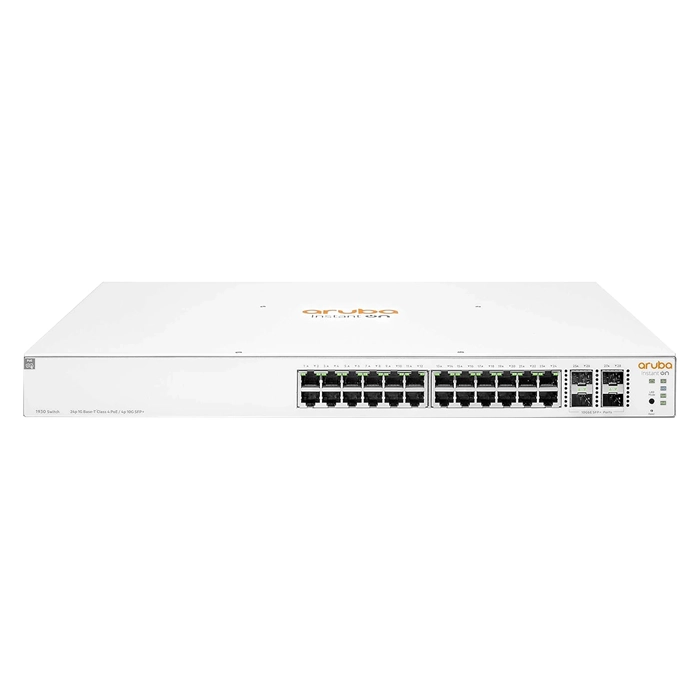

HP JL684-61101 | Aruba Instant On 1930 Series 1930-24G-Class4-PoE-4SFP/SFP+-370W 24 x 1000Base-T RJ-45 Class4 PoE and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
$1,128.43
$1,060.72Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL684-61101 | Aruba Instant On 1930 Series 1930-24G-Class4-PoE-4SFP/SFP+-370W 24 x 1000Base-T RJ-45 Class4 PoE and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
- HP Aruba Instant 1930-24G-Class4-PoE-4SFP/SFP+-370W (JL684-61101) is worth a close look if you're setting up or upgrading a network for IT teams standardizing wiring closets across a multi-building campus. It's a good match for IT teams standardizing wiring closets across a campus, schools and offices deploying wireless APs at scale, and security teams running IP camera networks that need power and data on one cable. Facilities with virtualization or NAS traffic riding the same switch will also benefit from the extra headroom. Port-wise, it offers 28 total network ports, laid out as 24xGigabit EthernetRJ-45,Class4 PoE and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. With PoE on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. Beyond the base ports, there's SFP+ expansion for uplinks. Onboard flash storage of 256 (MB) keeps firmware and config backups local to the switch. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows standard front-to-back airflow for predictable cooling. Also, twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect sources this HP Aruba Instant switch as a genuine, warranty-backed unit, with fast shipping across the US.
Technical Documents:
General Information:
| Product Line | Instant On 1930 |
|---|---|
| Model | 1930-24G-Class4-PoE-4SFP/SFP+-370W |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 28 |
| Number of Expansion Slots | 2 |
| Expansion Slots Details | SFP+ |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| Flash Storage Memory | 256 MB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| Height | 1.73 Inches |
| Width | 17.42 Inches |
| Depth | 10.42 Inches |
| Weight | 8.10 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
