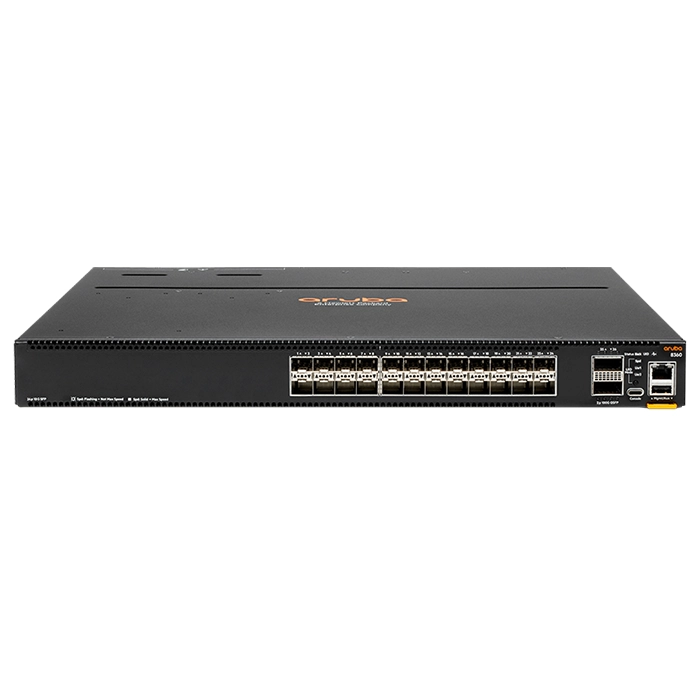

HP JL710A | Aruba CX 8360 v2 Series 8360-24xF2C v2 24 x 10GBase-X SFP+ and 2 x 100GBase-X QSFP28 Ports Layer 3 Managed Front-to-Back AirFlow Data Center Switch
Description:
- HP JL710A | Aruba CX 8360 v2 Series 8360-24xF2C v2 24 x 10GBase-X SFP+ and 2 x 100GBase-X QSFP28 Ports Layer 3 Managed Front-to-Back AirFlow Data Center Switch
- HP Aruba CX 8360-24XF2C v2 (JL710A) is worth a close look if you're setting up or upgrading a network for IT teams building out server, NAS and storage backbones. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. It brings 26 total network ports, laid out as 24x10 Gigabit EthernetSFP+ and 2x100 Gigabit EthernetQSFP28, topping out at 100GbE per port. It also adds QSFP28 expansion for uplinks. Onboard flash storage of 32 (GB) keeps firmware and config backups local to the switch. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air front-to-rear airflow for straightforward rack cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP28 covers both copper and fiber runs. GotoDirect ships this HP Aruba CX switch as genuine stock with full warranty backing and fast delivery nationwide.
- UPC: 190017406022
- EAN: 0190017406022
Technical Documents:
General Information:
| Product Line | CX 8360 v2 |
|---|---|
| Model | 8360-24XF2C v2 |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 26 |
| Number of Expansion Slots | 26 |
| Expansion Slots Details | QSFP28 |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard | Optical Fiber |
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 32 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-to-Rear AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 16.0 Inches |
| Weight | 17.8 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
