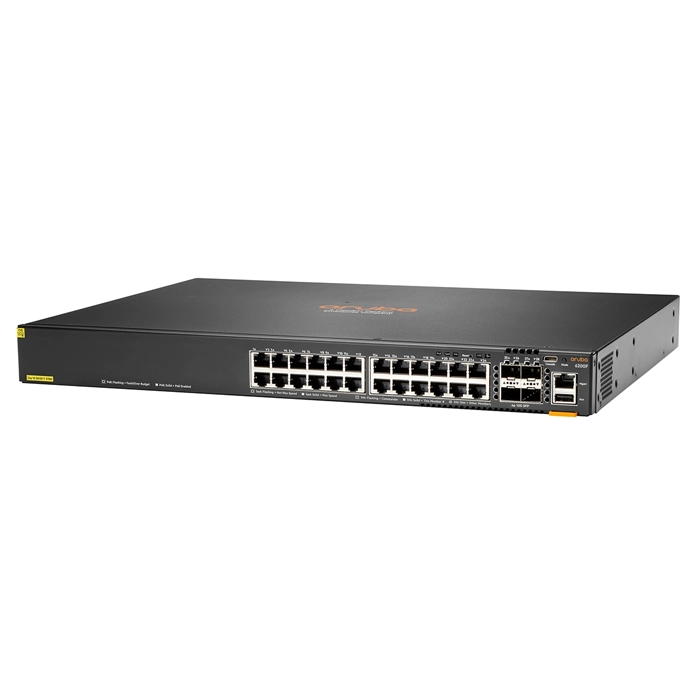

HP JL725A#B2B | Aruba CX 6200 Series 6200F-24G-Class4-PoE-4SFP+ (370W) 24 x 10/100/1000Base-T RJ-45 PoE+ and 4 x 10GbE SFP+ Ports Layer 3 Gigabit Managed Network Switch
$2,228.17
$2,094.48Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL725A#B2B | Aruba CX 6200 Series 6200F-24G-Class4-PoE-4SFP+ (370W) 24 x 10/100/1000Base-T RJ-45 PoE+ and 4 x 10GbE SFP+ Ports Layer 3 Gigabit Managed Network Switch
- HP Aruba CX 6200F-24G-Class4-PoE-4SFP+ (370W) (JL725A#B2B) is a strong, no-nonsense fit for IT teams standardizing wiring closets across a multi-building campus. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. It brings 28 total network ports, laid out as 24xGigabit EthernetPoE+,RJ-45 and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. PoE+ support means powered endpoints - APs, cameras, phones - plug straight into the switch without extra adapters. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. Beyond the base ports, there's SFP+ expansion for uplinks. A built-in 16 (GB) of flash storage holds firmware images and config backups on the switch itself. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and front-and-side-to-back airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect ships this HP Aruba CX switch as genuine stock with full warranty backing and fast delivery nationwide.
- UPC: 190017408682
Technical Documents:
General Information:
| Product Line | CX 6200 |
|---|---|
| Model | 6200F-24G-Class4-PoE-4SFP+ (370W) |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 28 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP+ |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 16 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 12.9 Inches |
| Weight | 4.90 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
