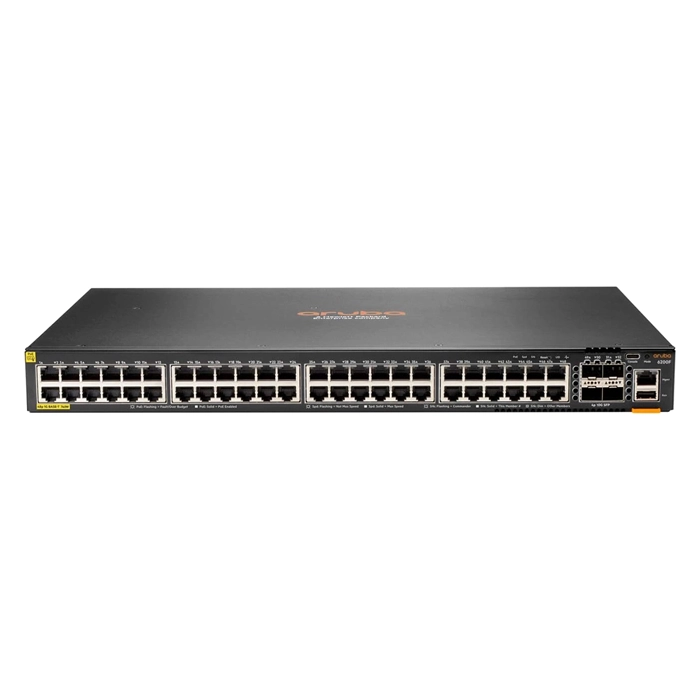

HP JL728B | Aruba CX 6200 Series 6200F-48G-Class4-PoE-4SFP+ (740W) 48 x 10/100/1000Base-T RJ-45 PoE+ and 4 x 10GbE SFP+ Ports Layer 3 Gigabit Managed Network Switch
$4,647.83
$4,368.96Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL728B | Aruba CX 6200 Series 6200F-48G-Class4-PoE-4SFP+ (740W) 48 x 10/100/1000Base-T RJ-45 PoE+ and 4 x 10GbE SFP+ Ports Layer 3 Gigabit Managed Network Switch
- HP Aruba CX 6200F-48G-Class4-PoE-4SFP+ (740W) (JL728B) is a solid pick for enterprises rolling out PoE access points, IP cameras and phones across large floors that don't want to overthink the network layer. It's a good match for IT teams standardizing wiring closets across a campus, schools and offices deploying wireless APs at scale, and security teams running IP camera networks that need power and data on one cable. Facilities with virtualization or NAS traffic riding the same switch will also benefit from the extra headroom. On the port side, you get 52 total network ports, laid out as 48xGigabit EthernetPoE+,RJ-45 and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. With PoE+ on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. On top of that, it has SFP+ expansion for uplinks. With 16 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and front-and-side-to-back airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect stocks the HP Aruba CX 6200F-48G-Class4-PoE-4SFP+ (740W) as genuine, warranty-covered hardware, with fast delivery across the US.
- UPC: 190017638393
Technical Documents:
General Information:
| Product Line | CX 6200 |
|---|---|
| Model | 6200F-48G-Class4-PoE-4SFP+ (740W) |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 52 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP+ |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 16 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 12.9 Inches |
| Weight | 5.10 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
