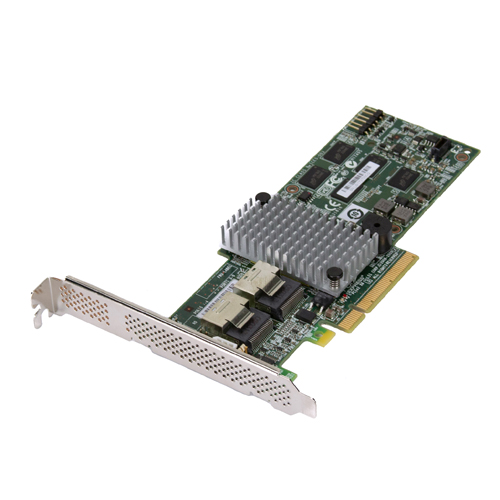

L3-01144-01C - LSI MegaRAID 3Gb/s SATA / SAS PCI-Express RAID Storage Controller

Here are the technical specs for the LSI MegaRAID 3Gb/s SATA / SAS PCI-Express RAID Storage Controller:

1. Interface: PCI-Express
2. Data Transfer Rate: 3Gb/s
3. Supported Devices: SAS/SATA
4. RAID Levels: 0, 1, 5, 6, 10, 50, 60
5. Cache Memory Size: 256MB DDR2 SDRAM
6. Number of Ports: 8 internal SAS/SATA ports
7. RAID-On-Chip (ROC) Controller: LSISAS1068E
8. RAID Management Software: MegaRAID Storage Manager
9. Operating System Support: Windows, Linux, Solaris, VMware
10. Form Factor: Low profile
11. Power Consumption: 9W
12. Dimensions: 6.6 x 2.5 in.

Helpful Notes:
1. This controller supports up to 128 SATA or SAS devices when used with SAS expanders.
2. The MegaRAID Storage Manager software allows for easy configuration and monitoring of RAID arrays.
3. The LSISAS1068E ROC controller provides hardware acceleration for RAID calculations, improving performance.
