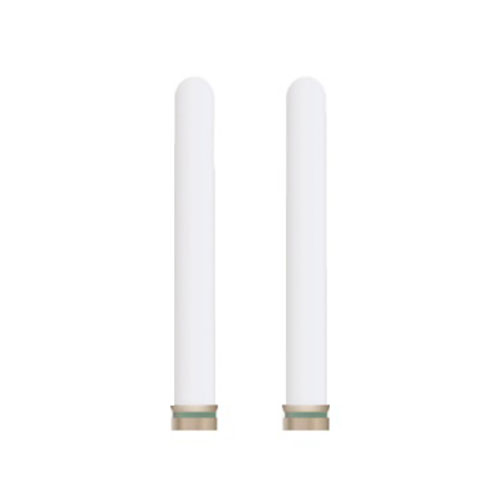

MA-ANT-20 - Cisco Meraki Dual Band Omni Antenna

1. Frequency Range: 2.4 GHz and 5 GHz
2. Gain: 4 dBi at 2.4 GHz and 7 dBi at 5 GHz
3. Polarization: Linear
4. Horizontal Beamwidth: 360 degrees
5. Vertical Beamwidth: 60 degrees at 2.4 GHz and 50 degrees at 5 GHz
6. VSWR: 2.0:1 maximum
7. Impedance: 50 ohms
8. Connector Type: RP-SMA plug (male)
9. Dimensions: 7.1 x 1.4 x 1.4 inches
10. Weight: 0.2 lbs
11. Operating Temperature: -40°C to 60°C (-40°F to 140°F)
12. Mounting: Wall or ceiling mountable

Notes:
1. This antenna is compatible with Cisco Meraki MR series access points.
2. The dual-band capability allows for increased flexibility and coverage.
3. The omnidirectional design provides 360-degree coverage, making it ideal for open spaces.
