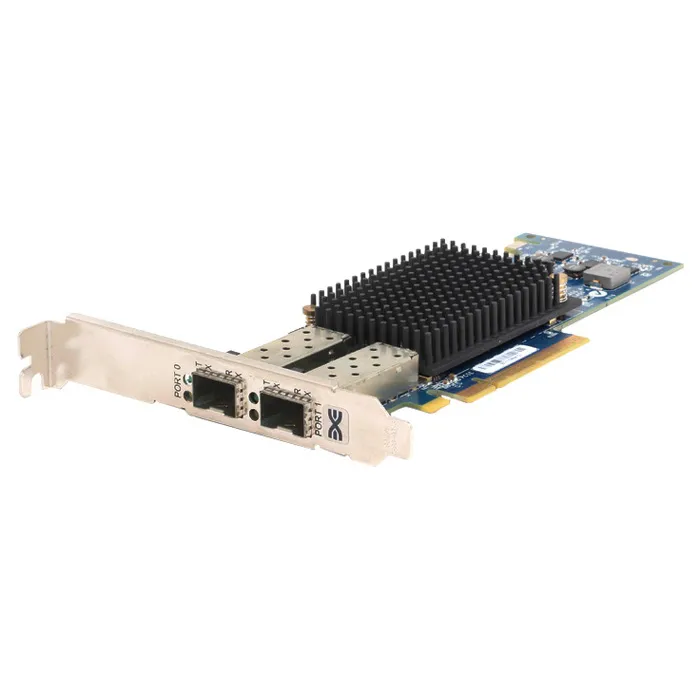

P004673-01 - IBM Emulex Dual-Port 10GB PCI-E 2.0x8 Network Interface Card forx3850x5 /x3950x5

Here are the technical specifications for the IBM Emulex Dual-Port 10GB PCI-E 2.0x8 Network Interface Card:

1. Interface: PCI-E 2.0 x8
2. Data Transfer Rate: 10 Gbps
3. Number of Ports: 2
4. Connectivity Technology: Wired
5. Cabling Type: Ethernet 10GBase-X
6. Form Factor: Plug-in Card
7. Processor: Emulex OneConnect OCe10102
8. Network / Transport Protocol: TCP/IP, UDP/IP, iSCSI, SMB, NFS
9. Features: Jumbo Frames support, PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS), TCP/IP checksum offload, UDP/IP checksum offload, iSCSI boot, VLAN tagging, IPv6 support
10. OS Required: Microsoft Windows Server 2008, Red Hat Enterprise Linux 5, SuSE Linux Enterprise Server 10, SuSE Linux Enterprise Server 11, VMware ESX 4.0, VMware ESXi 4.0
11. Dimensions (WxDxH): 6.6 cm x 16.8 cm
12. Weight: 68 g

Helpful notes:
1. This card is compatible with IBM System x3850 X5 and x3950 X5 servers.
2. It supports a variety of network protocols, including TCP/IP, UDP/IP, iSCSI, SMB, and NFS.
3. The card features advanced offloading capabilities, including Large Send Offload (LSO) and Receive Side Scaling (RSS), which help to improve network performance.
