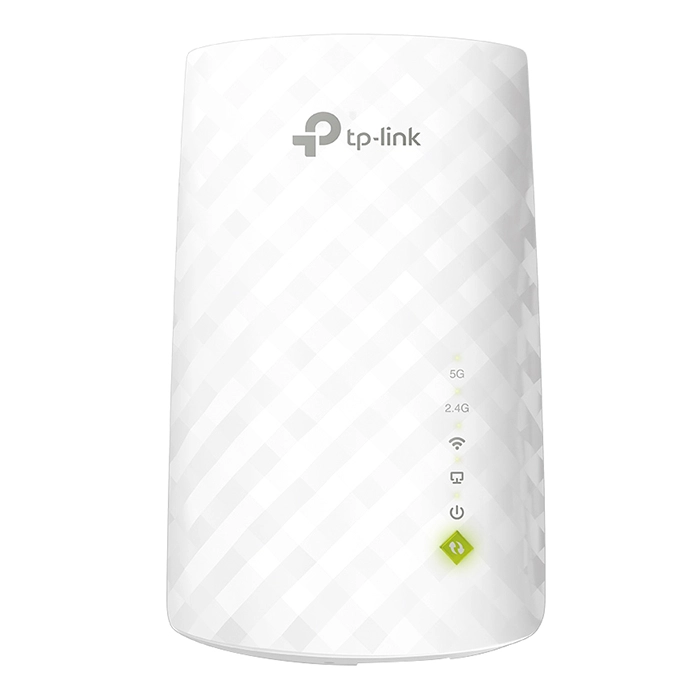

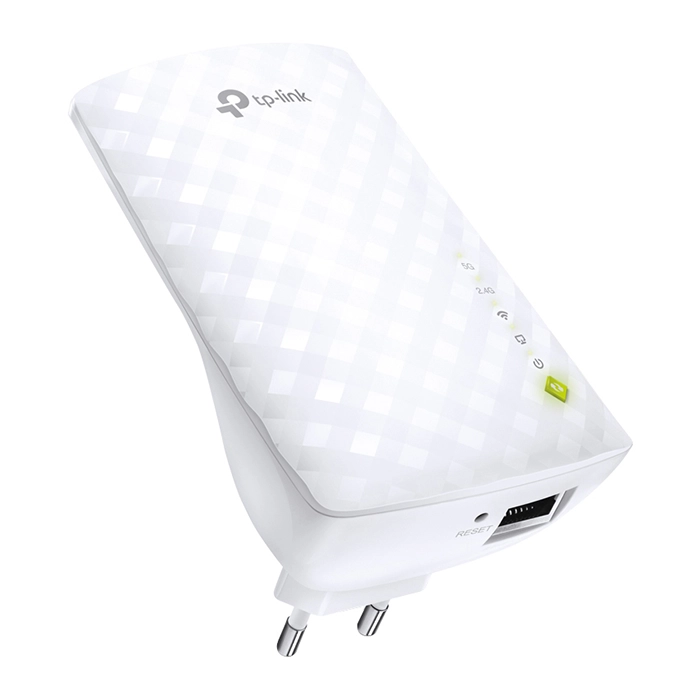

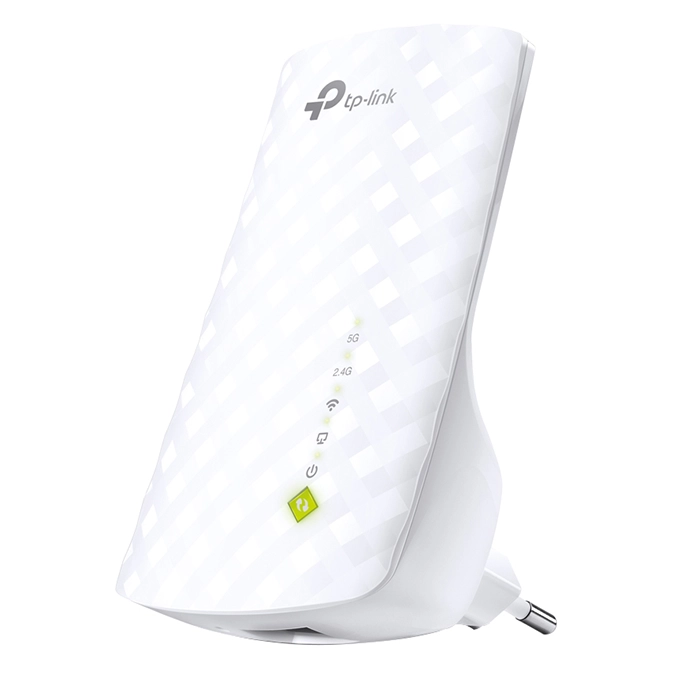

TP-LINK RE220-V1 | AC750 Mesh Wi-Fi Range Extender

Part No
RE220-V1
Manufacturer
Category
Availability
In Stock
Condition
Refurbished
$136.08
$121.11

Free ground shipping within US up to 10lbs

Payment:

Payment methods
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
  • TP-LINK RE220-V1 | AC750 Mesh Wi-Fi Range Extender
  • UPC: 921454265985
Technical Documents:
General Information:
Model RE220
Product Type Wireless Range Extender/Access Point
Package Quantity 1
Package Type Retail
Wireless Specification:
Wi-Fi Standard IEEE 802.11ac
Total Wireless Transmission Speed 750 Mbit/s
ISM Band Yes
UNII Band Yes
ISM Frequency 2.4 GHz
UNII Frequency 5 GHz
Number of Total Antennas 3
Number of Interior Antennas 3
Interfaces/Ports:
Number of Ethernet LAN Ports (RJ-45/SFP/SFP+) 1
Ethernet Technology Fast Ethernet
Physical Characteristics:
Form Factor Wall-mountable
Height 75.2 mm
Width 110.0 mm
Depth 65.8 mm
Power Description:
Power Source Power Supply
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • CE
Miscellaneous:
Additional Features

Wireless Standards:

  • IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency:

  • 2.4GHz & 5GHz

Signal Rate:

  • 300Mbps at 2.4GHz, 433Mbps at 5GHz

Working Modes:

  • Range Extender/Access Point

Reception Sensitivity:
5G:

  • 390M: -60dBm
  • 29.3M: -83dBm
  • 180M: -64dBm
  • 13.5M: -87dBm
  • 78M: -68dBm
  • 6.5M: -90dBm
  • 54M: -75dBm
  • 6M:-90dBm

2.4G:

  • 270M: -70dBm
  • 130M: -70dBm
  • 108M: -73dBm
  • 54M: -75dBm
  • 11M: -86dBm
  • 6M: -92dBm
  • 1M: -94dBm

Wireless Functions:

  • Enable/Disable Wireless Radio
  • DFS (the latest firmware and hardware version is required)
  • Access Control
  • LED Control
  • Power Schedule
  • Wi-Fi Coverage

Wireless Security:

  • 64/128/152-bit WEP
  • WPA-PSK / WPA2-PSK

Transmission Power:

  • < 20 dBm (EIRP)
