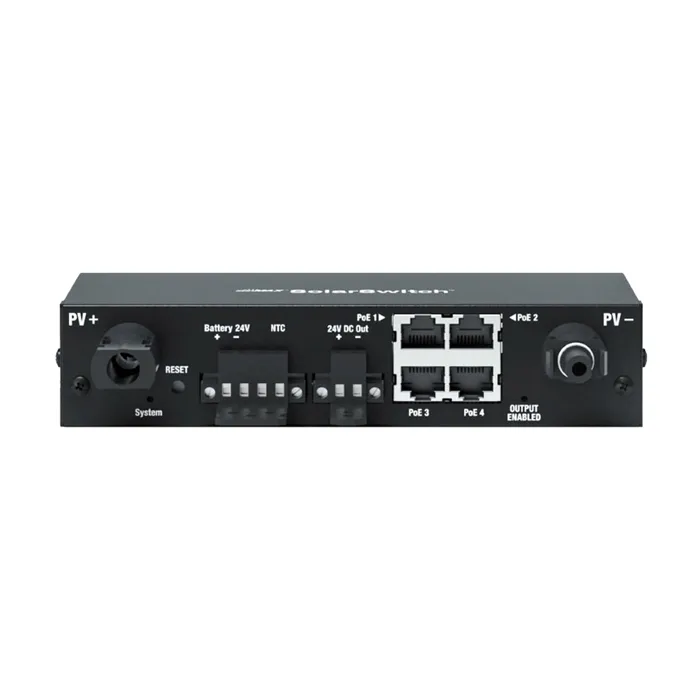

Ubiquiti SM-SW-40 | SunMax 4 x RJ-45 Ports PoE 10/100Base-TX Fast Ethernet SolarSwitch

Part No
SM-SW-40
Manufacturer
Category
Availability
In Stock
Condition
Refurbished
$610.80
$574.15

Free ground shipping within US up to 10lbs

Payment:

Payment methods
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
  • Ubiquiti SM-SW-40 | SunMax 4 x RJ-45 Ports PoE 10/100Base-TX Fast Ethernet SolarSwitch
  • Experience seamless connectivity with the Ubiquiti SM-SW-40 | Sunmax 4-Port PoE 10/100Base-TX SolarSwitch, built for speed, stability, and integration with existing network systems. Buy reliable network switches today at Goto Direct.
Technical Documents:
General Information:
Product Line SUNMAX Solar Switch
Model SM-SW-40
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots 4 x Fast Ethernet Network, PoE
Total Number of Network Ports 4
Ethernet Technology Fast Ethernet
Network Technology 10/100Base-TX
Media Standard Twisted Pair
Manageable Yes
Layer Supported 2
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source AC Adapter
Physical Characteristics:
Form Factor Standalone
Height 36 mm
Width 168 mm
Depth 136 mm
Weight 1.2 lbs
Compliance Standards:
Green Compliance
  • FCC
  • CE
  • IC
Miscellaneous:
Additional Features
  • Enclosure Characteristics: Steel, Indoor Use
  • Management Interface: Ethernet + Wi-Fi (2.4 GHz)
  • Power Source: PV Panel (H4 Connectors)
  • PV Input Voltage Range: 10-60V (Reverse Protection, Surge Protection)
  • PV Maximum Current: 10A
  • PV Power Control: MPPT
  • Output Interfaces: 24VDC Passive PoE (Pins 4, 5+; 7, 8-) 24VDC Terminal Block
  • Output Voltage: Battery Voltage Limited to 24V (Surge Protection)
  • Maximum Power Output: PoE: 17W, DC Out: 24W, Max. 40W Total
  • Battery Type: 24V SLA, AGM, Gel Lead Battery
  • Boost Voltage Steps: 27.4V/28.2V/29.1V/30V
  • Float Charge Voltage: 95% of Boost Voltage
  • Max. Charge Current: 7A
  • Undervoltage Protection: 22 – 23.6V Software Configurable, 22V Hardware Protection, 2 Priority Levels for Output Disable
  • Operating Temperature: -20 to 50° C (-4 to 122° F)
