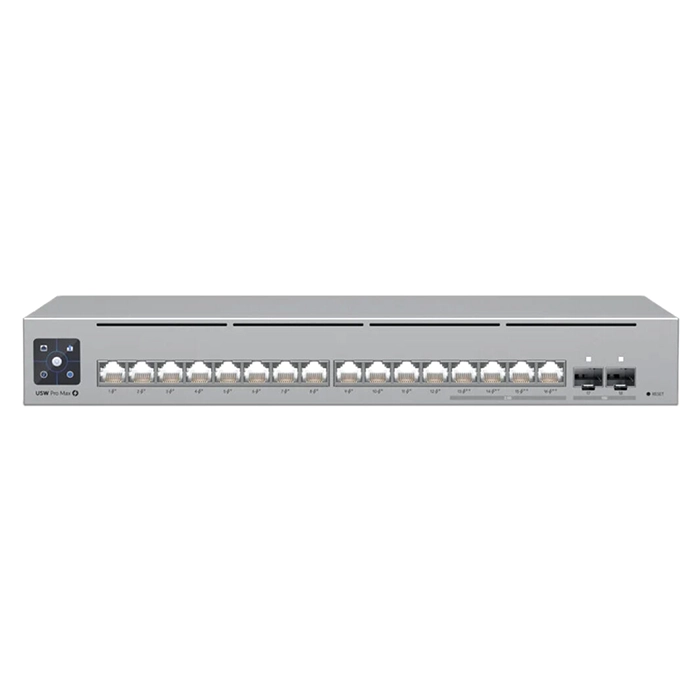

Ubiquiti USW-PRO-MAX-16-POE-180W | 16-Port, Layer 3 Etherlighting Switch with 2.5 GbE, PoE++ Output, and Versatile Mounting Options

Part No USW-PRO-MAX-16-POE-180W
Manufacturer Ubiquiti
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$717.46
$674.41
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • Ubiquiti USW-PRO-MAX-16-POE-180W | 16-Port, Layer 3 Etherlighting Switch with 2.5 GbE, PoE++ Output, and Versatile Mounting Options
  • UPC: 810084694558
General Information:
Product Line UniFi Switch
Model Pro Max 16 PoE
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 12 x Gigabit Ethernet PoE+
  • 4 x 2.5 Gigabit Ethernet PoE++
  • 2 x 10 Gigabit Ethernet SFP+
Total Number of Network Ports 18
Number of Expansion Slots 2
Expansion Slots Details SFP+
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
  • 2.5 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
  • 2.5GBase-T
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Physical Characteristics:
Form Factor
  • Portable
  • Rack-mountable
  • Wall-mountable
Supported Rack 1U
Height 43.7 mm
Width 325.1 mm
Depth 160 mm
Weight 2.1 kg
Compliance Standards:
Green Compliance
  • FCC
  • CE
  • IC
  • NDAA
Miscellaneous:
Additional Features

Performance:

  • Switching Capacity: 84 Gbps
  • Total Non-Blocking Throughput: 42 Gbps
  • Forwarding Rate: 62 Mpps
  • Supported VLANs: 1,000
  • MAC Address Table Size: 16,000

L3 Table Size:

  • ARP Entries: 6,000
  • IPv4 Routes: 512
  • Packet Buffer Size: 1.5 MB

Layer 3 Features:

  • DHCP Server (Local Networks): Yes
  • DHCP Relay: Yes
  • Inter-VLAN Routing (Local Networks): Yes
  • Static Routing (Local Networks): Yes

Layer 2 Features:

  • LACP Port Aggregation: Yes
  • STP & RSTP: Yes
  • QoS (DSCP): Yes
  • Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes
  • Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
  • IGMP Snooping: Yes
  • 802.1X Control: Yes
  • MAC-Based ACLs & Device Isolation: Yes
  • DHCP Snooping & Guarding: Yes
  • Egress Rate Limit: Yes
  • Flow Control: Yes
  • Storm Control: Yes
  • Multicast & Broadcast Rate Limiting: Yes
  • MAC Address Blocking: Yes
  • IP-Based ACLs & Network Isolation: Yes
  • MAC-Based Port Restriction: Yes
  • Port Isolation: Yes
  • Port Mirroring: Yes
  • Jumbo Frames: Yes
  • LLDP-MED: Yes
  • Voice VLAN: Yes
  • Loop Protection: Yes



LCM Display: 1.3" Touch Screen
