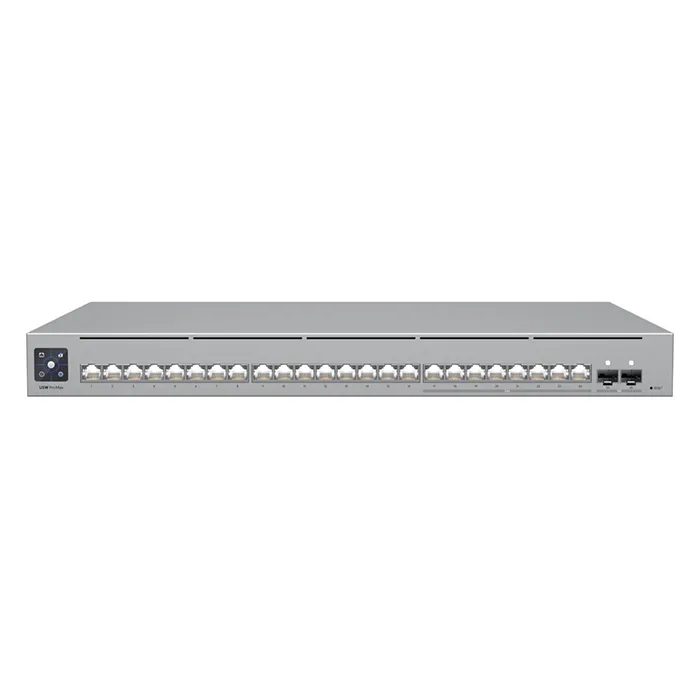

Ubiquiti USW-PRO-MAX-24-POE-400W | 24-Ports Layer 3 Etherlight Switch with 2.5GbE and PoE++ Output

Part No USW-PRO-MAX-24-POE-400W
Manufacturer Ubiquiti
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$1,443.57
$1,371.39
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • Ubiquiti USW-PRO-MAX-24-POE-400W | 24-Ports Layer 3 Etherlight Switch with 2.5GbE and PoE++ Output
  • UPC: 810084692608
General Information:
Product Line UniFi Switch
Model Pro Max 24 PoE
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 8 x Gigabit Ethernet PoE+
  • 8 x Gigabit Ethernet PoE++
  • 8 x 2.5 Gigabit Ethernet PoE++
  • 2 x 10 Gigabit Ethernet SFP+
Total Number of Network Ports 26
Number of Expansion Slots 2
Expansion Slots Details SFP+
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
  • 2.5 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 100GBase-X
  • 2.5GBase-T
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 44 mm
Width 442 mm
Depth 325 mm
Weight 5.1 kg
Compliance Standards:
Green Compliance
  • FCC
  • CE
  • IC
  • NDAA
Miscellaneous:
Additional Features

Performance:

  • Switching Capacity: 112 Gbps
  • Total Non-Blocking Throughput: 56 Gbps
  • Forwarding Rate: 83 Mpps
  • Supported VLANs: 1,000
  • MAC Address Table Size: 16,000

L3 Table Size:

  • ARP Entries: 6000



  • Packet Buffer Size: 1.5 MB

Layer 3 Features:

  • DHCP Server (Local Networks): Yes
  • DHCP Relay: Yes
  • Inter-VLAN Routing (Local Networks): Yes
  • Static Routing (Local Networks): Yes

Layer 2 Features:

  • LACP Port Aggregation: Yes
  • STP & RSTP: Yes
  • QoS (DSCP): Yes
  • Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes
  • Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
  • IGMP Snooping: Yes
  • 802.1X Control: Yes
  • MAC-Based ACLs & Device Isolation: Yes
  • DHCP Snooping & Guarding: Yes
  • Egress Rate Limit: Yes
  • Flow Control: Yes
  • Storm Control: Yes
  • Multicast & Broadcast Rate Limiting: Yes
  • MAC Address Blocking: Yes
  • IP-Based ACLs & Network Isolation: Yes
  • MAC-Based Port Restriction: Yes
  • Port Isolation: Yes
  • Port Mirroring: Yes
  • Jumbo Frames: Yes
  • LLDP-MED: Yes
  • Voice VLAN: Yes
  • Loop Protection: Yes



LCM Display: 1.3" Touch Screen
