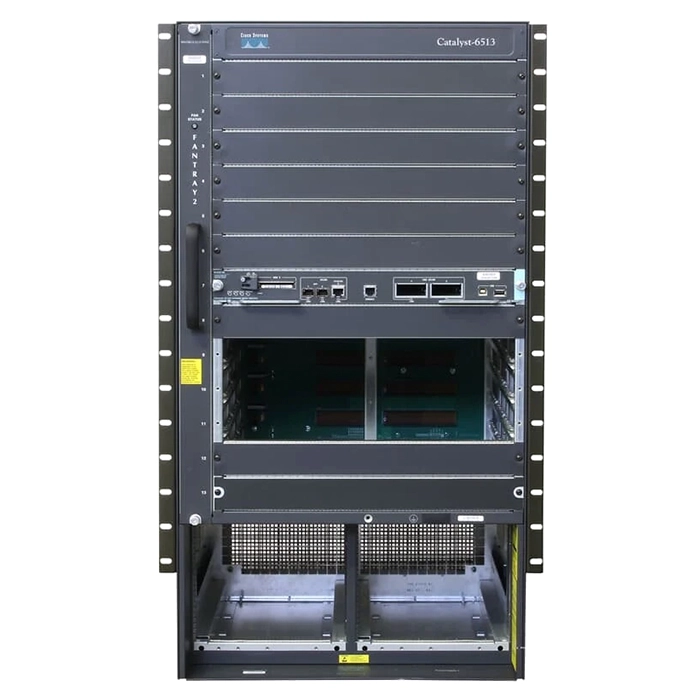

WS-C6513 | Cisco Catalyst 6513 13-Slots Network Switch Chassis

1. Dimensions: 17.5 x 17.2 x 33.7 inches
2. Weight: 190 lbs
3. Power supply: AC 100/240 V ( 50/60 Hz )
4. Max Power Consumption: 2500W
5. Operating Temperature: 32°F to 104°F (0°C to 40°C)
6. Number of Slots: 13
7. Maximum VLANs: 4096
8. Maximum MAC Addresses: 128,000
9. Maximum Transmission Unit (MTU): 9198 bytes
10. Switching Capacity: 720 Gbps
11. Forwarding Rate: 400 Mpps
12. Redundant Power Supply: Yes

Notes:
1. The chassis is designed for high-performance enterprise and service provider distribution, core layers, and data center deployments.
2. The Cisco Catalyst 6513 switch chassis supports a wide range of modules, including Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, and ATM.
3. The chassis provides high availability with redundant supervisor engines, power supplies, and fans.
