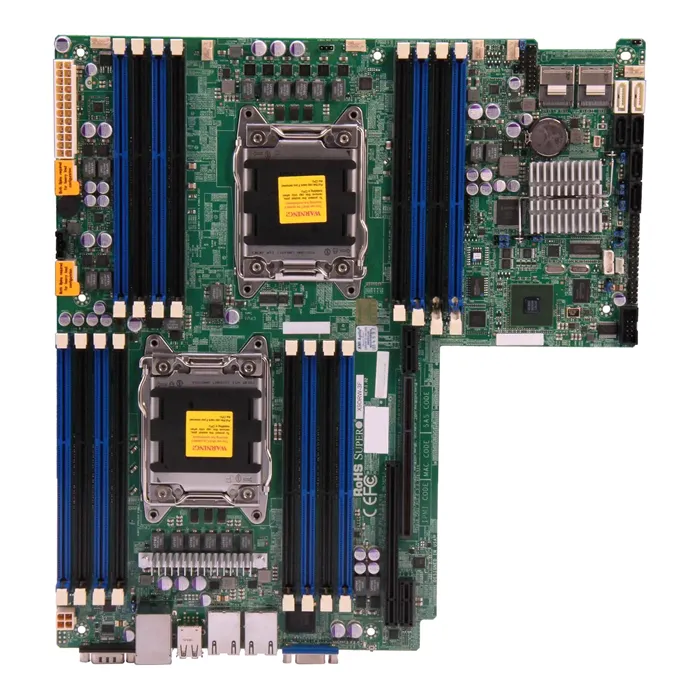

Supermicro X9DRW-3F-O | Dual LGA2011/ Intel C606/ DDR3/ SATA3/SAS/ V/2GbE/ Proprietary WIO Server Motherboard (System Board)

1. Form Factor: Proprietary WIO
2. CPU Socket Type: Dual LGA2011
3. Chipset Type: Intel C606
4. Memory Type: DDR3 ECC Registered DIMM
5. Number of Memory Slots: 16
6. Maximum Supported Memory: 512GB
7. Memory Speed Supported: 1600/1333/1066 MHz
8. SATA 3 Ports: 8
9. SAS Ports: 8
10. PCI-E x8 Slots: 2
11. PCI-E x16 Slots: 2
12. Network Interfaces: Dual Port 10 Gigabit Ethernet

Helpful Notes:
1. This motherboard supports Intel Xeon E5-2600 series processors.
2. It has a power connector for ATX12V and EPS12V power supplies.
3. The motherboard supports IPMI 2.0 with virtual media over LAN and KVM-over-LAN.
