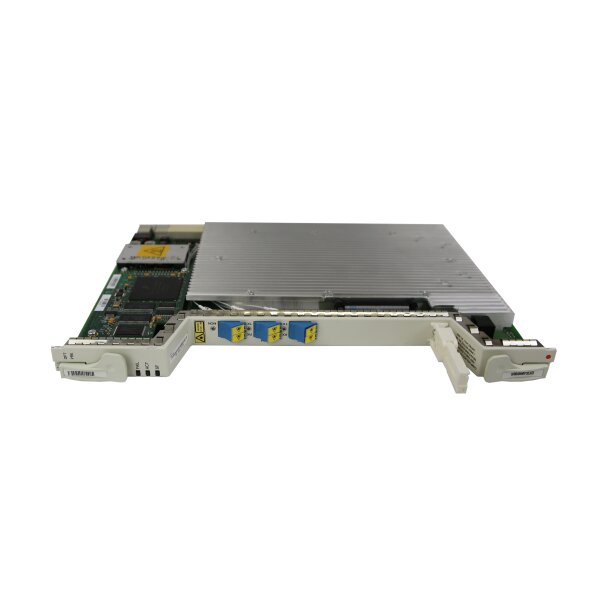

Cisco 15454-OPT-PRE= | 15454 Ons Optical Pre-Amplifier Module

1. Power Consumption: 18 Watts
2. Operating Temperature: -5°C to 55°C
3. Humidity Range: 5% to 95%
4. Input Power Range: -30 dBm to -5 dBm
5. Output Power Range: 17 dBm to 23 dBm
6. Frequency Range: C-Band, ITU Grid
7. Noise Figure: < 5 dB
8. Gain Flatness: ± 0.5 dB
9. Input/Output Connector: SC/APC
10. Optical Return Loss: > 50 dB
11. Input/Output Impedance: 50 Ohms
12. Dimensions: 1.2 in. H x 10.6 in. W x 7.1 in. D

Notes:
1. The Cisco 15454 ONS Optical Pre-Amplifier MO is designed for use with the Cisco ONS 15454 Multiservice Transport Platform.
2. The pre-amplifier provides high gain and low noise figure to compensate for long fiber spans and high attenuation.
3. The SC/APC connectors ensure secure and reliable connections.
