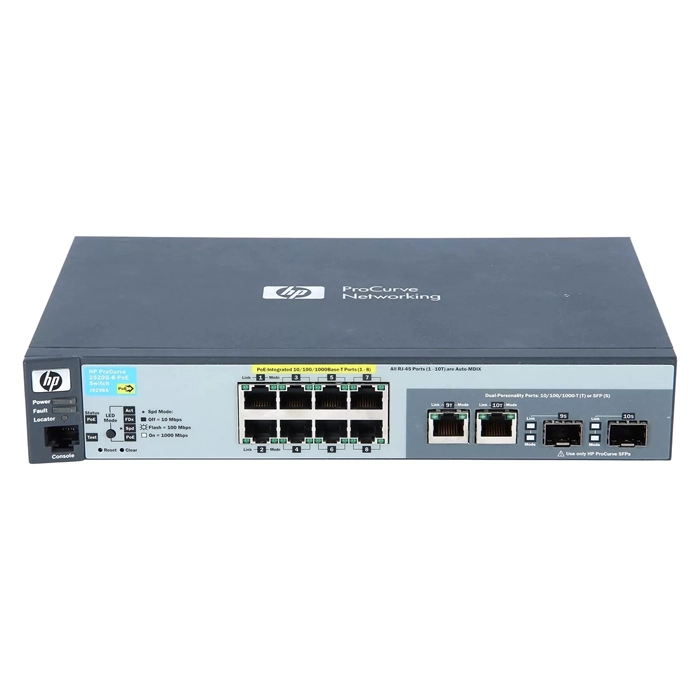

HP J9298AN | ProCurve 2520 Series 2520-8G-PoE 8 x 10/100/1000Base-T RJ-45 PoE and 2 x 10/100/1000Base-T RJ45/SFP (mini-GBIC) Ports Layer 2 Managed Gigabit Ethernet Network Switch
$336.30
$316.12Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP J9298AN | ProCurve 2520 Series 2520-8G-PoE 8 x 10/100/1000Base-T RJ-45 PoE and 2 x 10/100/1000Base-T RJ45/SFP (mini-GBIC) Ports Layer 2 Managed Gigabit Ethernet Network Switch
- HP ProCurve 2520-8G-PoE (J9298AN) shows up a lot in shortlists for small clinics or studios that need a few powered ports without a big rack, and for good reason. It suits small offices, retail locations and branch sites that need to power a modest number of APs, cameras or VoIP phones, plus home labs where PoE simplifies cabling without justifying an enterprise-class switch. Port-wise, it offers 12 total network ports, laid out as 8xGigabit EthernetPoE,RJ-45 and 2xGigabit EthernetRJ-45 and 2xGigabit EthernetSFP (mini-GBIC), topping out at Gigabit (1GbE) per port. Built-in PoE power delivery runs access points, IP cameras and VoIP phones straight off the switch, cutting down on wall adapters. Layer 2 operation keeps the design lean - MAC-table forwarding and VLANs, without routing overhead. On top of that, it has SFP (mini-GBIC) expansion for uplinks. Onboard flash storage of 32 (MB) keeps firmware and config backups local to the switch. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and standard front-to-back airflow that lines up with typical rack airflow planning. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. Buy the HP ProCurve 2520-8G-PoE from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
| Product Line | ProCurve 2520 |
|---|---|
| Model | 2520-8G-PoE |
| Product Type | Layer 2 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 12 |
| Number of Expansion Slots | 2 |
| Expansion Slots Details | SFP (mini-GBIC) |
| Modular Expansion | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 2 |
| Console Management Port | Yes |
| Flash Storage Memory | 32 MB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| Height | 1.75 Inches |
| Width | 10 Inches |
| Depth | 6.28 Inches |
| Weight | 3.66 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
