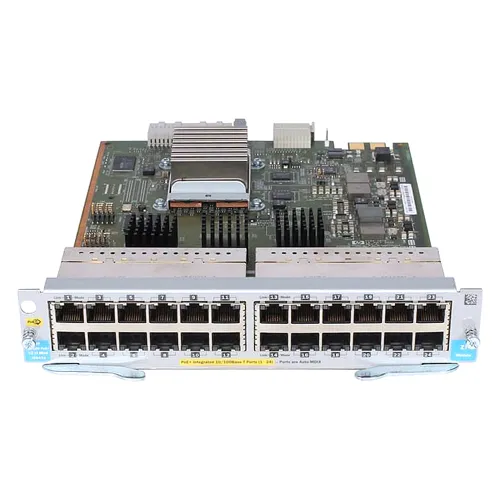

J9547A - HP PoE+ v2 zl Expansion Module

Technical Specifications:
1. Compatibility: HP E5400 and E8200 series switches
2. PoE+ power: Up to 1440 W
3. Number of ports: 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T, IEEE 802.3at PoE+)
4. Switching capacity: 96 Gbps
5. Throughput: 71.4 Mpps
6. MAC address table size: 32,000 entries
7. Jumbo frame support: Up to 9220 bytes
8. Power consumption: 1440 W maximum
9. Dimensions (WxDxH): 10.3 x 8.1 x 1.8 in
10. Weight: 4.45 lbs
11. Operating temperature range: 32°F to 131°F (0°C to 55°C)
12. Operating humidity range: 15% to 95% @ 104°F (40°C) (non-condensing)

Helpful Notes:
1. This expansion module provides high-density PoE+ connectivity for power-hungry devices.
2. It can be hot-swapped without interrupting the network.
3. The J9547A module is compatible with HP E5400 and E8200 series switches.
