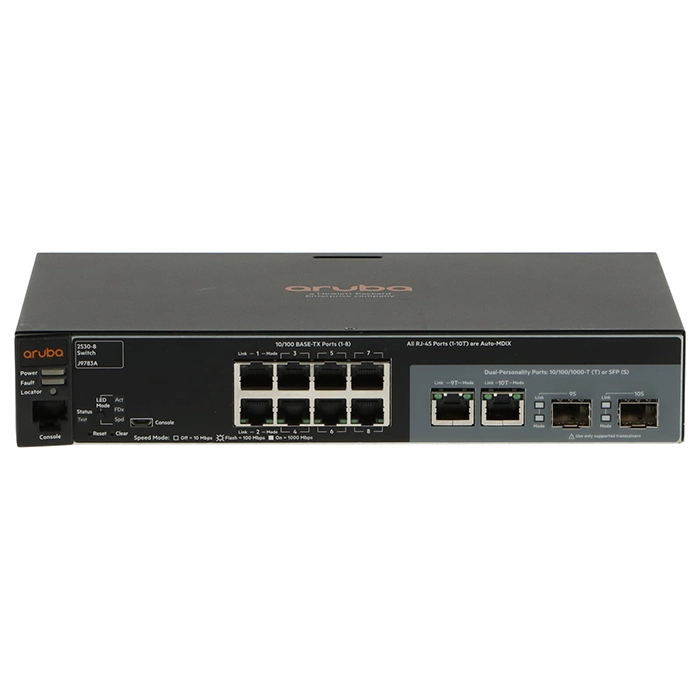

HP J9783-61001 | Aruba 2530 Series 2530-8 8 x RJ-45 10/100Base-TX and 2 Combo Gigabit SFP Ports Layer 2 Managed Fast Ethernet Network Switch

$644.92

Free ground shipping within US up to 10lbs

Payment:

Looking for a bulk discount? Please call us at +1(888)203-4073 and one of our representative will be happy to assist you with part no. J9783-61001

HP J9783-61001 | Aruba 2530 Series 2530-8 8 x RJ-45 10/100Base-TX and 2 Combo Gigabit SFP Ports Layer 2 Managed Fast Ethernet Network Switch
HP Aruba 2530-8 (J9783-61001) shows up a lot in shortlists for small retail counters or back offices needing a couple of extra ports, and for good reason. Growing offices and branch sites that want managed features like VLANs, QoS and basic monitoring - but not the cost of a full data-center switch - line up well with this one. On the port side, you get 12 total network ports, laid out as 8xFast EthernetRJ-45 and 2xGigabit EthernetRJ-45,Uplink and 2xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. It rounds this out with SFP (mini-GBIC) expansion for uplinks. Settings and firmware are stored in onboard non-volatile memory, so they survive reboots and power cycles. Layer 2 operation keeps the design lean - MAC-table forwarding and VLANs, without routing overhead. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows standard front-to-back airflow for predictable cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. GotoDirect stocks the HP Aruba 2530-8 as genuine, warranty-covered hardware, with fast delivery across the US.

Technical Documents:

Number of Network Ports/Expansion Slots	8 x Fast Ethernet RJ-45 2 x Gigabit Ethernet RJ-45, Uplink 2 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports	12
Number of Expansion Slots	4
Expansion Slots Details	SFP (mini-GBIC)
Modular Expansion	Yes
Ethernet Technology	Fast Ethernet Gigabit Ethernet
Network Technology	10/100/1000Base-T 10/100Base-TX 1000Base-X
Media Standard	Twisted Pair Optical Fiber
Manageable	Yes
Layer Supported	2
USB Port	Yes
Console Management Port	Yes

Power Source	Power Supply
Power Input	AC-Input

Green Compliance	FCC VCCI

Additional Features	IPv6 Ready Certified 100 Mb Latency: < 1.3 µs (LIFO 64-byte packets) 1000 Mb Latency: < 1.3 µs (LIFO 64-byte packets) Throughput: up to 4.1 Mpps (64-byte packets) Switching capacity: 5.6 Gbps MAC address table size: 16000 entries
