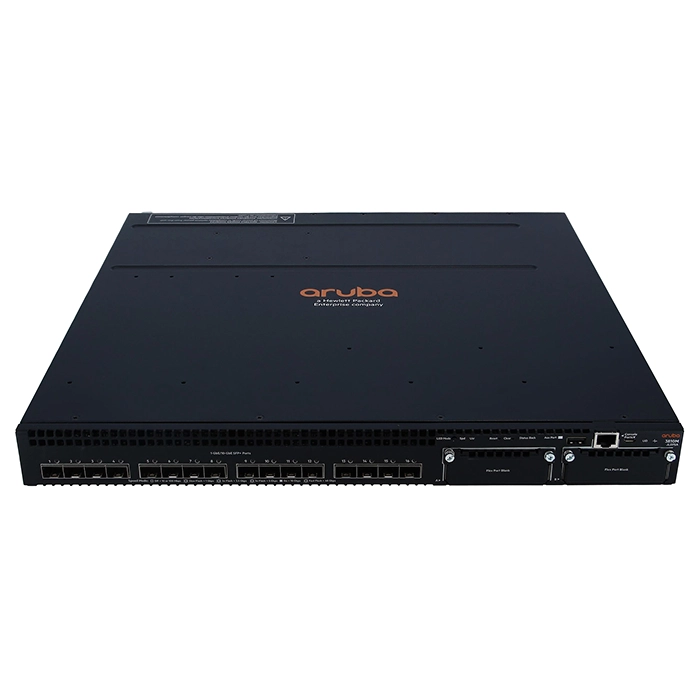

HP JL075-61101 | Aruba 3810 Series 3810M 16SFP+ 2‑slot 16 x 10GbE SFP+ and 2 x Expansion Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
$2,855.46
$2,712.69Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL075-61101 | Aruba 3810 Series 3810M 16SFP+ 2‑slot 16 x 10GbE SFP+ and 2 x Expansion Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
- HP Aruba 3810M 16SFP+ 2‑slot (JL075-61101) is the switch IT teams supporting network cores and aggregation layers feeding busy server racks often turn to when they need something that just works. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Wiring is handled by 16 total network ports, laid out as 16x10 Gigabit EthernetSFP+ and 1xExpansion Module and 1xStacking Module, topping out at 10GbE per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. On top of that, it has SFP+,Stacking Module,Expansion Module expansion for uplinks and stacking so multiple units run as one logical switch. With 1 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows front-and-side-to-back airflow for predictable cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over SFP+,Stacking Module,Expansion Module covers both copper and fiber runs. GotoDirect sources this HP Aruba switch as a genuine, warranty-backed unit, with fast shipping across the US.
Technical Documents:
General Information:
| Product Line | 3810 |
|---|---|
| Model | 3810M 16SFP+ 2‑slot |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 16 |
| Number of Expansion Slots | 19 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-X |
| Media Standard | Optical Fiber |
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Stacking Port | Yes |
| Flash Storage Memory | 1 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.42 Inches |
| Depth | 16.98 Inches |
| Weight | 13.28 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
