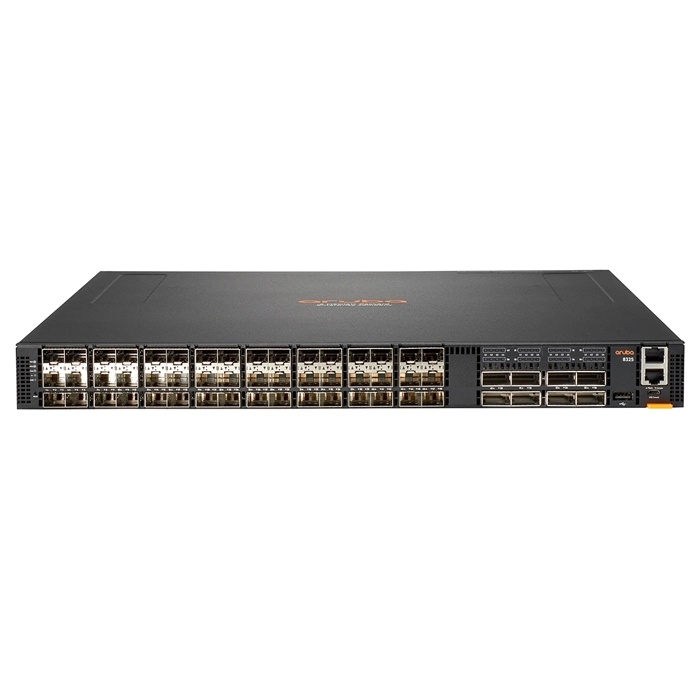

HP JL624A | Aruba CX 8325 Series 8325-48Y8C 48 x 25GbE SFP28 and 8 x 100GbE QSFP28 Layer 3 Managed Front-to-Back Airflow Network Switch
$12,029.64
$11,548.45Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL624A | Aruba CX 8325 Series 8325-48Y8C 48 x 25GbE SFP28 and 8 x 100GbE QSFP28 Layer 3 Managed Front-to-Back Airflow Network Switch
- HP Aruba CX 8325-48Y8C (JL624A) is a solid pick for media and rendering studios moving large files between workstations and storage that don't want to overthink the network layer. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Wiring is handled by 56 total network ports, laid out as 48x25 Gigabit EthernetSFP28 and 8x100 Gigabit EthernetQSFP28, topping out at 100GbE per port. It rounds this out with QSFP28,SFP28 expansion for uplinks. A built-in 8 (GB) of flash storage holds firmware images and config backups on the switch itself. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and front-to-rear airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP28,SFP28 covers both copper and fiber runs. GotoDirect sources this HP Aruba CX switch as a genuine, warranty-backed unit, with fast shipping across the US.
Technical Documents:
General Information:
| Product Line | CX 8325 |
|---|---|
| Model | 8325-48Y8C |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 56 |
| Number of Expansion Slots | 56 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard | Optical Fiber |
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 8 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-to-Rear AirFlow |
| Height | 1.71 Inches |
| Width | 17.26 Inches |
| Depth | 21.1 Inches |
| Weight | 10 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
