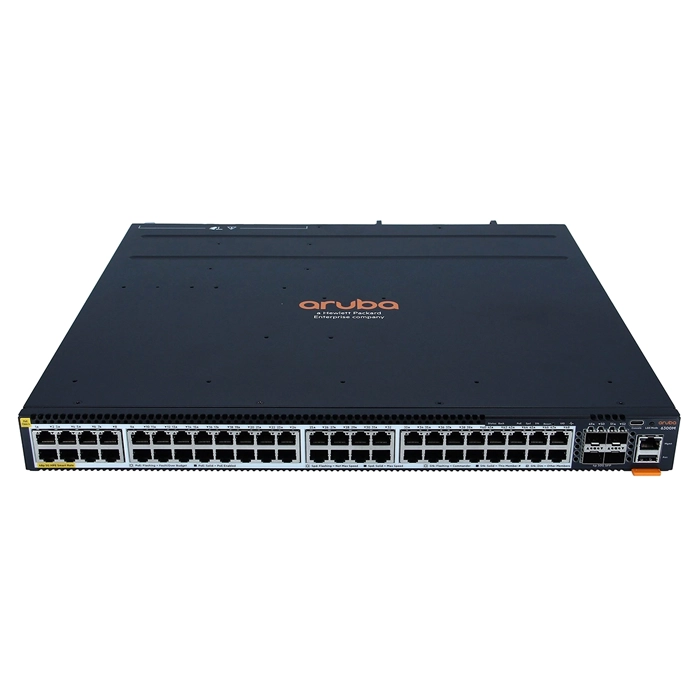

HP JL659-61001 | Aruba CX 6300M Series 48 x 5GBase-T RJ-45 Class6 PoE and 4 x 50GbE SFP56 Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
$16,703.79
$16,035.64Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL659-61001 | Aruba CX 6300M Series 48 x 5GBase-T RJ-45 Class6 PoE and 4 x 50GbE SFP56 Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
- HP Aruba CX 6300M 48-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 (JL659-61001) is a solid pick for growing offices that need to power dozens of endpoints straight from the switch that don't want to overthink the network layer. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. On the port side, you get 52 total network ports, laid out as 48x5 Gigabit EthernetRJ-45,Class6 PoE and 4x50 Gigabit EthernetSFP56,Uplink/Stacking, topping out at 50GbE per port. PoE support means powered endpoints - APs, cameras, phones - plug straight into the switch without extra adapters. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. On top of that, it has SFP56 expansion for uplinks. Onboard flash storage of 32 (GB) keeps firmware and config backups local to the switch. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows front-and-side-to-back airflow for predictable cooling. GotoDirect sources this HP Aruba CX switch as a genuine, warranty-backed unit, with fast shipping across the US.
Technical Documents:
General Information:
| Product Line | CX 6300M |
|---|---|
| Model | 6300M 48-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 52 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP56 |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 32 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 15.2 Inches |
| Weight | 6.71 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
