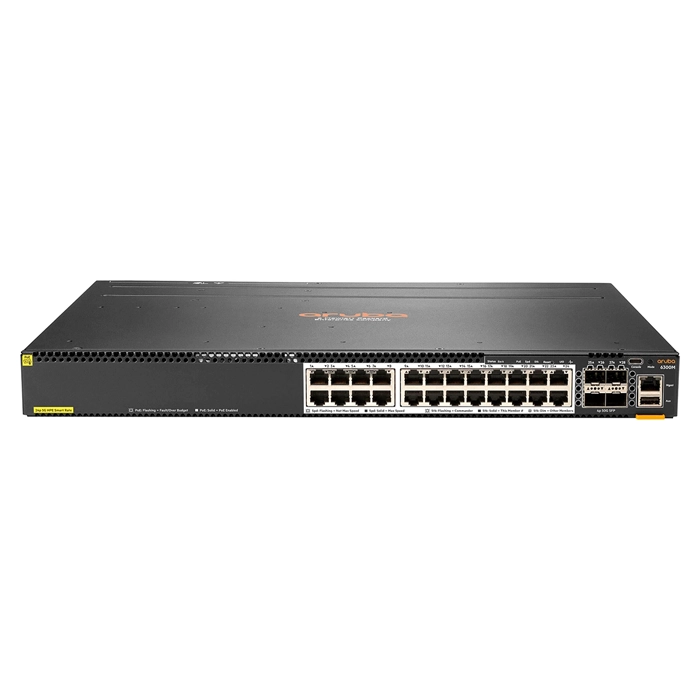

HP JL660A#ABA | Aruba CX 6300M Series 24 x 5GBase-T RJ-45 Class6 PoE and 4 x 50GbE SFP56 Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
$7,355.49
$7,061.27Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL660A#ABA | Aruba CX 6300M Series 24 x 5GBase-T RJ-45 Class6 PoE and 4 x 50GbE SFP56 Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
- HP Aruba CX 6300M 24-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 (JL660A#ABA) is built to handle campus networks and multi-floor offices with dense wireless AP and VoIP deployments without drama. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. On the port side, you get 28 total network ports, laid out as 24x5 Gigabit EthernetRJ-45,Class6 PoE and 4x50 Gigabit EthernetSFP56,Uplink/Stacking, topping out at 50GbE per port. Beyond the base ports, there's SFP56 expansion for uplinks. With 32 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. With PoE on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and front-and-side-to-back airflow that lines up with typical rack airflow planning. GotoDirect sources this HP Aruba CX switch as a genuine, warranty-backed unit, with fast shipping across the US.
- UPC: 190017339429
Technical Documents:
General Information:
| Product Line | CX 6300M |
|---|---|
| Model | 6300M 24-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 28 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP56 |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 32 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 15.2 Inches |
| Weight | 6.06 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
