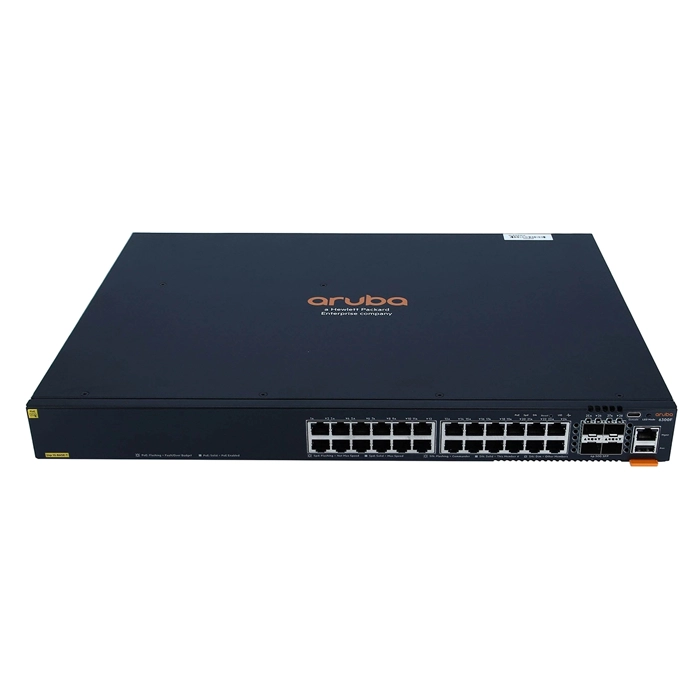

HP JL666-61101 | Aruba CX 6300F Series 24 x 1000Base-T RJ-45 Class4 PoE and 4 x 50GbE SFP56 Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
$2,878.60
$2,705.88Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL666-61101 | Aruba CX 6300F Series 24 x 1000Base-T RJ-45 Class4 PoE and 4 x 50GbE SFP56 Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
- HP Aruba CX 6300F 24-port 1GbE Class 4 PoE and 4-port SFP56 (JL666-61101) is a solid pick for growing offices that need to power dozens of endpoints straight from the switch that don't want to overthink the network layer. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. Wiring is handled by 28 total network ports, laid out as 24xGigabit EthernetRJ-45,Class4 PoE and 4x50 Gigabit EthernetSFP56,Uplink/Stacking, topping out at 50GbE per port. On top of that, it has SFP56 expansion for uplinks. Onboard flash storage of 32 (GB) keeps firmware and config backups local to the switch. With PoE on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and front-and-side-to-back airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP56 covers both copper and fiber runs. GotoDirect ships this HP Aruba CX switch as genuine stock with full warranty backing and fast delivery nationwide.
Technical Documents:
General Information:
| Product Line | CX 6300F |
|---|---|
| Model | 6300F 24-port 1GbE Class 4 PoE and 4-port SFP56 |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 28 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP56 |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 32 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 12.9 Inches |
| Weight | 4.95 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
