Image may differ from original

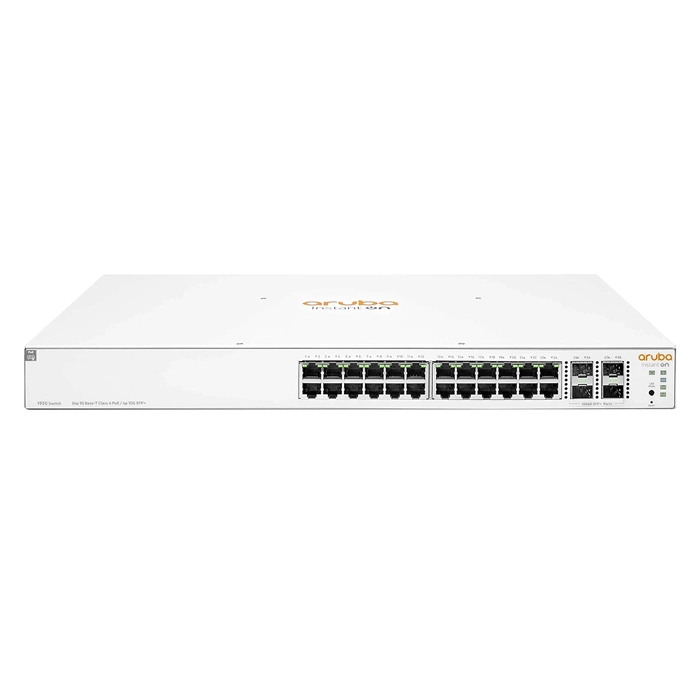

HP JL683-61001 | Aruba Instant On 1930 Series 1930-24G-Class4-PoE-4SFP/SFP+-195W 24 x 1000Base-T RJ-45 Class4 PoE and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
$669.20
$629.05Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL683-61001 | Aruba Instant On 1930 Series 1930-24G-Class4-PoE-4SFP/SFP+-195W 24 x 1000Base-T RJ-45 Class4 PoE and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
- HP Aruba Instant 1930-24G-Class4-PoE-4SFP/SFP+-195W (JL683-61001) is worth a close look if you're setting up or upgrading a network for campus networks and multi-floor offices with dense wireless AP and VoIP deployments. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. On the port side, you get 28 total network ports, laid out as 24xGigabit EthernetRJ-45,Class4 PoE and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. It rounds this out with SFP+ expansion for uplinks. Onboard flash storage of 256 (MB) keeps firmware and config backups local to the switch. With PoE on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air standard front-to-back airflow, so it fits cleanly next to existing gear. Also, twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect sources this HP Aruba Instant switch as a genuine, warranty-backed unit, with fast shipping across the US.
Technical Documents:
General Information:
| Product Line | Instant On 1930 |
|---|---|
| Model | 1930-24G-Class4-PoE-4SFP/SFP+-195W |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 28 |
| Number of Expansion Slots | 2 |
| Expansion Slots Details | SFP+ |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| Flash Storage Memory | 256 MB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| Height | 1.73 Inches |
| Width | 17.42 Inches |
| Depth | 10.42 Inches |
| Weight | 7.71 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
