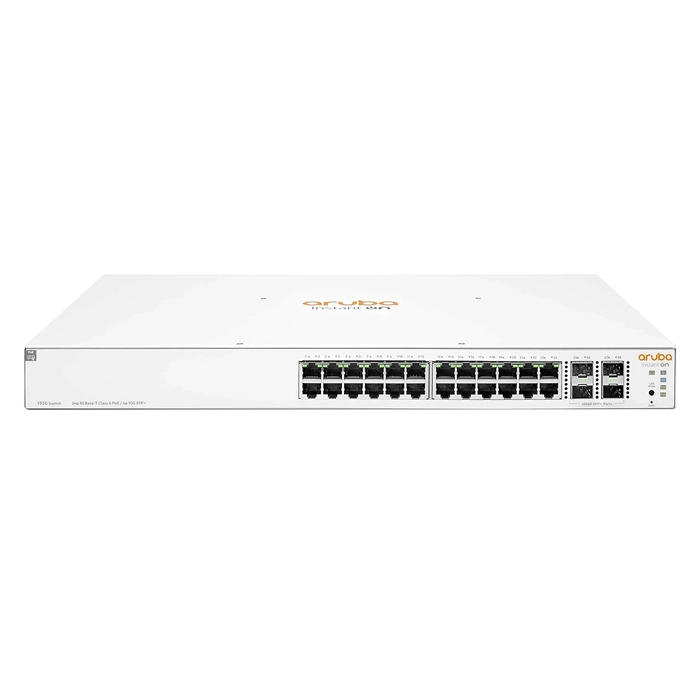

HP JL683B | Aruba Instant On 1930 Series 1930-24G-Class4-PoE-4SFP/SFP+-195W 24 x 1000Base-T RJ-45 Class4 PoE and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
$669.20
$629.05Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL683B | Aruba Instant On 1930 Series 1930-24G-Class4-PoE-4SFP/SFP+-195W 24 x 1000Base-T RJ-45 Class4 PoE and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
- HP Aruba Instant 1930-24G-Class4-PoE-4SFP/SFP+-195W (JL683B) is worth a close look if you're setting up or upgrading a network for schools and universities powering classroom APs and phones at scale. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. It brings 28 total network ports, laid out as 24xGigabit EthernetRJ-45,Class4 PoE and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. It rounds this out with SFP+ expansion for uplinks. A built-in 256 (MB) of flash storage holds firmware images and config backups on the switch itself. With PoE on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. Also, twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect stocks the HP Aruba Instant 1930-24G-Class4-PoE-4SFP/SFP+-195W as genuine, warranty-covered hardware, with fast delivery across the US.
- UPC: 190017593241
Technical Documents:
General Information:
| Product Line | Instant On 1930 |
|---|---|
| Model | 1930-24G-Class4-PoE-4SFP/SFP+-195W |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 28 |
| Number of Expansion Slots | 2 |
| Expansion Slots Details | SFP+ |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| Flash Storage Memory | 256 MB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| Height | 1.73 Inches |
| Width | 17.42 Inches |
| Depth | 10.42 Inches |
| Weight | 7.71 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
