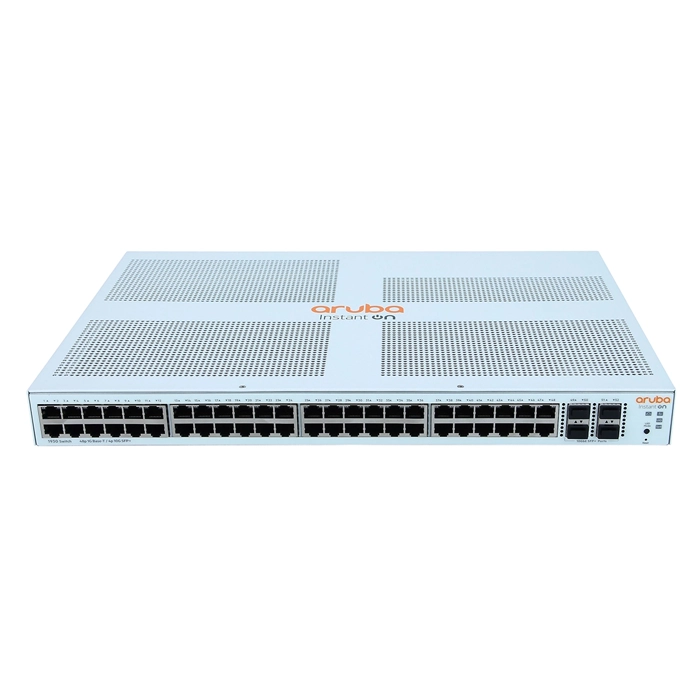

HP JL685-61101 | Aruba Instant On 1930 Series 1930-48G-4SFP/SFP+ 48 x 1000Base-T RJ-45 and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No
JL685-61101
Manufacturer
HP
Category
Availability
In Stock
Condition
New
$739.87
$695.48

Free ground shipping within US up to 10lbs

Payment:

Payment methods
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
  • HP JL685-61101 | Aruba Instant On 1930 Series 1930-48G-4SFP/SFP+ 48 x 1000Base-T RJ-45 and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP Aruba Instant 1930-48G-4SFP/SFP+ (JL685-61101) is built to handle media and rendering studios moving large files between workstations and storage without drama. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. On the port side, you get 52 total network ports, laid out as 48xGigabit EthernetRJ-45 and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. It rounds this out with SFP+ expansion for uplinks. With 256 (MB) of onboard flash, firmware and configuration backups don't depend on a remote server. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air standard front-to-back airflow, so it fits cleanly next to existing gear. Also, twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. When you order the HP Aruba Instant 1930-48G-4SFP/SFP+ through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.

General Information:
Product Line Instant On 1930
Model 1930-48G-4SFP/SFP+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x Gigabit Ethernet RJ-45
  • 4 x 10 Gigabit Ethernet SFP+, Uplink
Total Number of Network Ports 52
Number of Expansion Slots 2
Expansion Slots Details SFP+
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Flash Storage Memory 256 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.42 Inches
Depth 11.12 Inches
Weight 6.91 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
  • ICES-003
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 4.5 uSec
  • 1000 Mb Latency: < 2.2 uSec
  • 10000 Mb Latency: < 1.2 uSec
  • Throughput (Mpps): 130.95 Mpps
  • Switching capacity: 176 Gbps
  • Routing Table size (# of static entries): 32 static entries
  • MAC Address table size (# of entries): 16,000 entries
  • Reliability MTBF (years): 114
