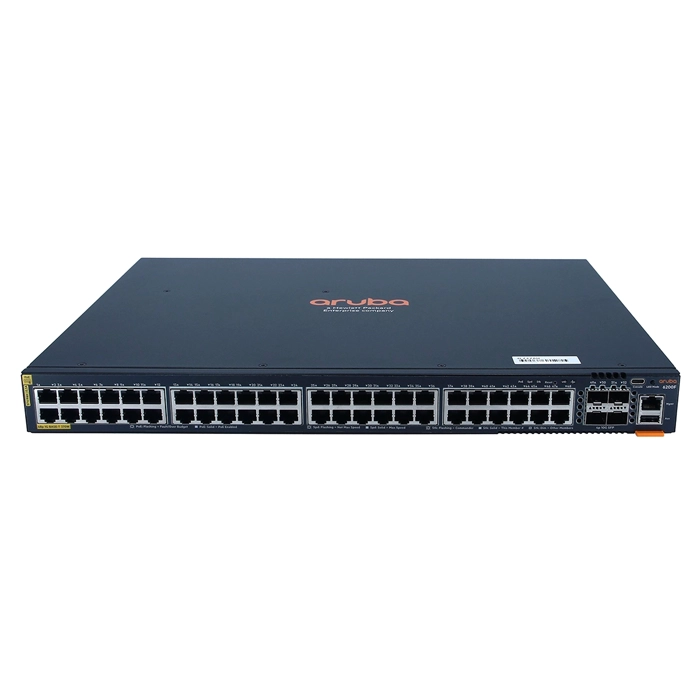

HP JL727B | Aruba CX 6200 Series 6200F-48G-Class4-PoE-4SFP+ (370W) 48 x 10/100/1000Base-T RJ-45 PoE+ and 4 x 10GbE SFP+ Ports Layer 3 Gigabit Managed Network Switch
$5,752.93
$5,522.81Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL727B | Aruba CX 6200 Series 6200F-48G-Class4-PoE-4SFP+ (370W) 48 x 10/100/1000Base-T RJ-45 PoE+ and 4 x 10GbE SFP+ Ports Layer 3 Gigabit Managed Network Switch
- HP Aruba CX 6200F-48G-Class4-PoE-4SFP+ (370W) (JL727B) is built to handle large offices consolidating dozens of PoE endpoints onto fewer switches without drama. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. Port-wise, it offers 52 total network ports, laid out as 48xGigabit EthernetPoE+,RJ-45 and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. On top of that, it has SFP+ expansion for uplinks. Onboard flash storage of 16 (GB) keeps firmware and config backups local to the switch. PoE+ support means powered endpoints - APs, cameras, phones - plug straight into the switch without extra adapters. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air front-and-side-to-back airflow, so it fits cleanly next to existing gear. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect stocks the HP Aruba CX 6200F-48G-Class4-PoE-4SFP+ (370W) as genuine, warranty-covered hardware, with fast delivery across the US.
- UPC: 190017638614
Technical Documents:
General Information:
| Product Line | CX 6200 |
|---|---|
| Model | 6200F-48G-Class4-PoE-4SFP+ (370W) |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 52 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP+ |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 16 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 12.9 Inches |
| Weight | 5.05 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
