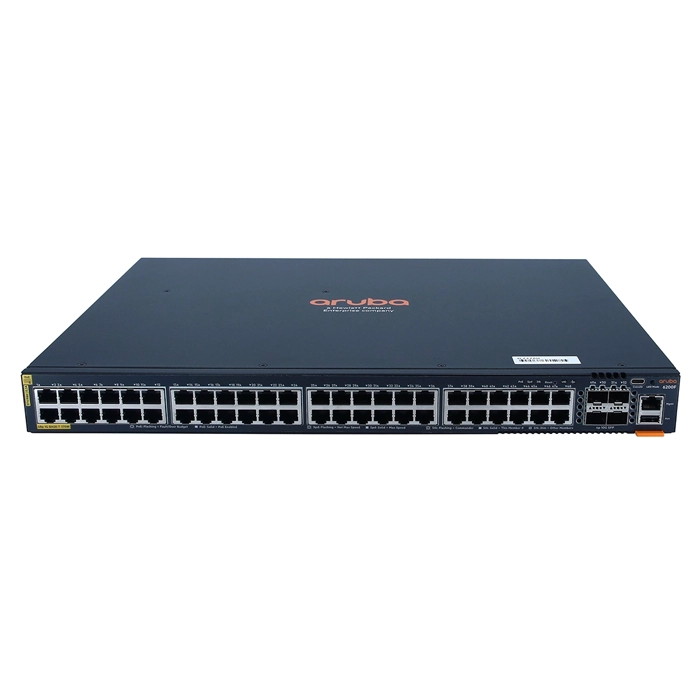

HP JL727A#B2B | Aruba CX 6200 Series 6200F-48G-Class4-PoE-4SFP+ (370W) 48 x 10/100/1000Base-T RJ-45 PoE+ and 4 x 10GbE SFP+ Ports Layer 3 Gigabit Managed Network Switch
$3,577.73
$3,363.07Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL727A#B2B | Aruba CX 6200 Series 6200F-48G-Class4-PoE-4SFP+ (370W) 48 x 10/100/1000Base-T RJ-45 PoE+ and 4 x 10GbE SFP+ Ports Layer 3 Gigabit Managed Network Switch
- HP Aruba CX 6200F-48G-Class4-PoE-4SFP+ (370W) (JL727A#B2B) is worth a close look if you're setting up or upgrading a network for campus networks and multi-floor offices with dense wireless AP and VoIP deployments. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. On the port side, you get 52 total network ports, laid out as 48xGigabit EthernetPoE+,RJ-45 and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. On top of that, it has SFP+ expansion for uplinks. With 16 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. With PoE+ on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and front-and-side-to-back airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect ships this HP Aruba CX switch as genuine stock with full warranty backing and fast delivery nationwide.
- UPC: 190017408989
Technical Documents:
General Information:
| Product Line | CX 6200 |
|---|---|
| Model | 6200F-48G-Class4-PoE-4SFP+ (370W) |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 52 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP+ |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 16 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 12.9 Inches |
| Weight | 5.05 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
