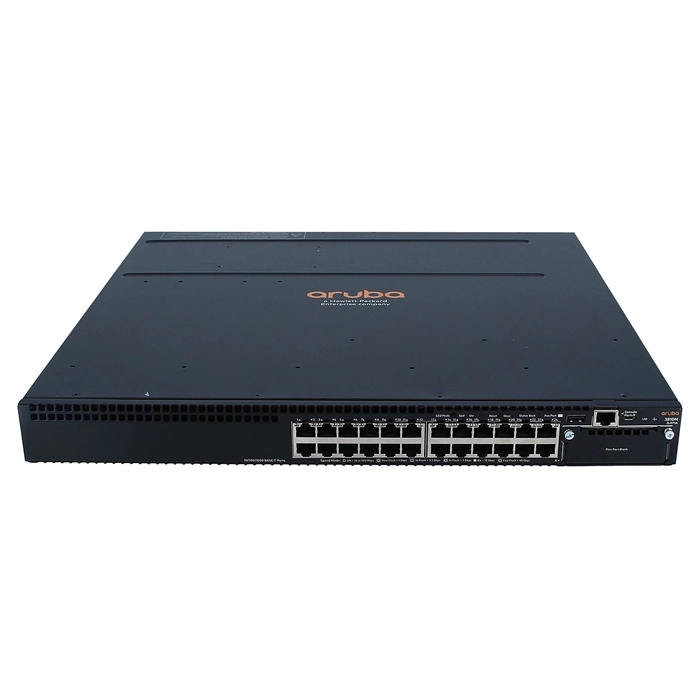

HP JL071-61001 | Aruba 3810 Series 3810M 24G 1‑slot 24 x 10/100/1000Base-T RJ-45 and 1 x Expansion Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
$378.68
$355.96Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL071-61001 | Aruba 3810 Series 3810M 24G 1‑slot 24 x 10/100/1000Base-T RJ-45 and 1 x Expansion Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
- HP Aruba 3810M 24G 1‑slot (JL071-61001) shows up a lot in shortlists for media and rendering studios moving large files between workstations and storage, and for good reason. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. It brings 24 total network ports, laid out as 24xGigabit EthernetRJ-45 and 1xExpansion Module and 1xStacking Module, topping out at Gigabit (1GbE) per port. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. Beyond the base ports, there's Stacking Module,Expansion Module expansion for uplinks and stacking so multiple units run as one logical switch. A built-in 1 (GB) of flash storage holds firmware images and config backups on the switch itself. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air front-and-side-to-back airflow for straightforward rack cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair media over Stacking Module,Expansion Module covers both copper and fiber runs. Buy the HP Aruba 3810M 24G 1‑slot from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
| Product Line | 3810 |
|---|---|
| Model | 3810M 24G 1‑slot |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 24 |
| Number of Expansion Slots | 2 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Media Standard | Twisted Pair |
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Stacking Port | Yes |
| Flash Storage Memory | 1 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.42 Inches |
| Depth | 16.98 Inches |
| Weight | 12.76 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
