Image may differ from original

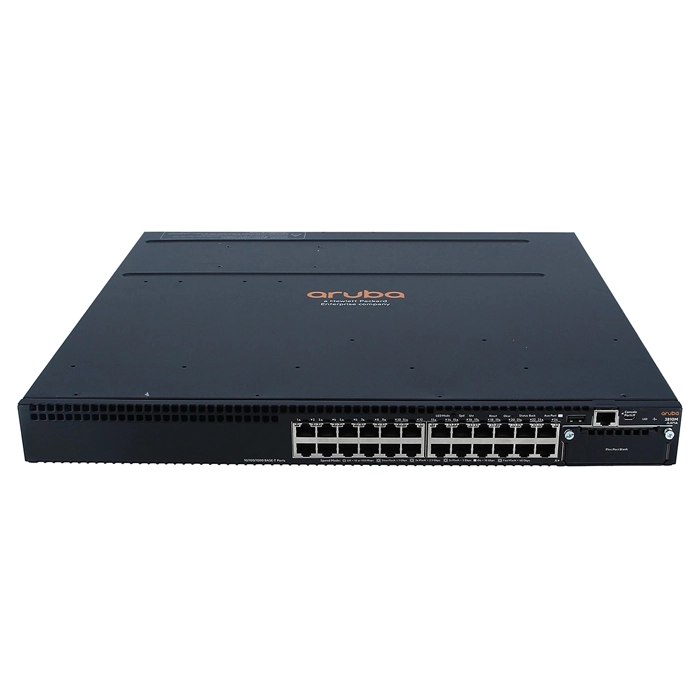

HP JL071-61101 | Aruba 3810 Series 3810M 24G 1‑slot 24 x 10/100/1000Base-T RJ-45 and 1 x Expansion Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
$378.68
$355.96Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL071-61101 | Aruba 3810 Series 3810M 24G 1‑slot 24 x 10/100/1000Base-T RJ-45 and 1 x Expansion Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
- HP Aruba 3810M 24G 1‑slot (JL071-61101) is built to handle media and rendering studios moving large files between workstations and storage without drama. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Port-wise, it offers 24 total network ports, laid out as 24xGigabit EthernetRJ-45 and 1xExpansion Module and 1xStacking Module, topping out at Gigabit (1GbE) per port. It also adds Stacking Module,Expansion Module expansion for uplinks and stacking so multiple units run as one logical switch. With 1 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and front-and-side-to-back airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair media over Stacking Module,Expansion Module covers both copper and fiber runs. GotoDirect sources this HP Aruba switch as a genuine, warranty-backed unit, with fast shipping across the US.
Technical Documents:
General Information:
| Product Line | 3810 |
|---|---|
| Model | 3810M 24G 1‑slot |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 24 |
| Number of Expansion Slots | 2 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Media Standard | Twisted Pair |
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Stacking Port | Yes |
| Flash Storage Memory | 1 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.42 Inches |
| Depth | 16.98 Inches |
| Weight | 12.76 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
