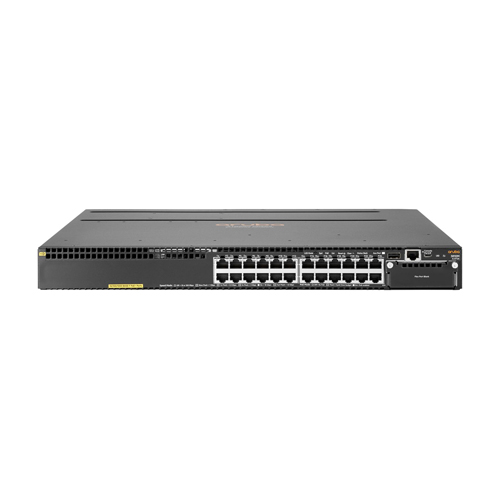

HP JL073AR | Aruba 3810 Series 3810M 24G PoE+ 1‑slot 24 x 10/100/1000Base-T RJ-45 PoE+ and 1 x Expansion Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
$276.47
$259.88Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL073AR | Aruba 3810 Series 3810M 24G PoE+ 1‑slot 24 x 10/100/1000Base-T RJ-45 PoE+ and 1 x Expansion Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
- HP Aruba 3810M 24G PoE+ 1‑slot (JL073AR) is a strong, no-nonsense fit for enterprises rolling out PoE access points, IP cameras and phones across large floors. It's a good match for IT teams standardizing wiring closets across a campus, schools and offices deploying wireless APs at scale, and security teams running IP camera networks that need power and data on one cable. Facilities with virtualization or NAS traffic riding the same switch will also benefit from the extra headroom. Wiring is handled by 24 total network ports, laid out as 24xGigabit EthernetPoE+,RJ-45 and 1xExpansion Module and 1xStacking Module, topping out at Gigabit (1GbE) per port. On top of that, it has Stacking Module,Expansion Module expansion for uplinks and stacking so multiple units run as one logical switch. Onboard flash storage of 1 (GB) keeps firmware and config backups local to the switch. Built-in PoE+ power delivery runs access points, IP cameras and VoIP phones straight off the switch, cutting down on wall adapters. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and front-and-side-to-back airflow that lines up with typical rack airflow planning. GotoDirect sources this HP Aruba switch as a genuine, warranty-backed unit, with fast shipping across the US.
- UPC: 190017074702
Technical Documents:
General Information:
| Product Line | 3810 |
|---|---|
| Model | 3810M 24G PoE+ 1‑slot |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 24 |
| Number of Expansion Slots | 2 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Media Standard | Twisted Pair |
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Stacking Port | Yes |
| Flash Storage Memory | 1 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.42 Inches |
| Depth | 16.98 Inches |
| Weight | 13.02 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
