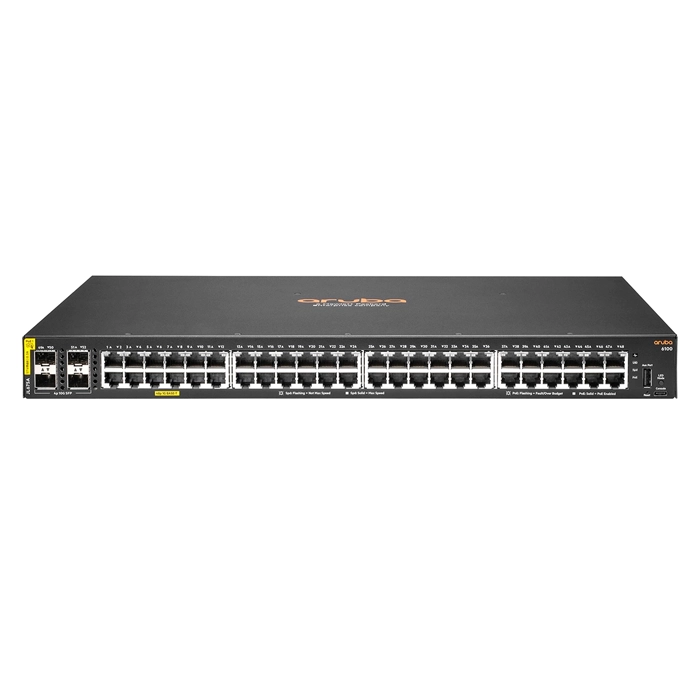

HP JL675-61001 | Aruba CX 6100 Series 6100 48G Class4 PoE 4SFP+ 370W 48 x 1000Base-T RJ-45 Class 4 PoE and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
$2,855.46
$2,712.69Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL675-61001 | Aruba CX 6100 Series 6100 48G Class4 PoE 4SFP+ 370W 48 x 1000Base-T RJ-45 Class 4 PoE and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
- HP Aruba CX 6100 48G Class4 PoE 4SFP+ 370W (JL675-61001) is a solid pick for schools and universities powering classroom APs and phones at scale that don't want to overthink the network layer. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. Wiring is handled by 52 total network ports, laid out as 48xGigabit EthernetRJ-45,Class4 PoE and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. Beyond the base ports, there's SFP+ expansion for uplinks. With 16 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. PoE support means powered endpoints - APs, cameras, phones - plug straight into the switch without extra adapters. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and side-to-side airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect stocks the HP Aruba CX 6100 48G Class4 PoE 4SFP+ 370W as genuine, warranty-covered hardware, with fast delivery across the US.
- UPC: 0190017347998
Technical Documents:
General Information:
| Product Line | CX 6100 |
|---|---|
| Model | 6100 48G Class4 PoE 4SFP+ 370W |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 52 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP+ |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 16 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Side-to-Side AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 12.0 Inches |
| Weight | 5.02 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
