Image may differ from original

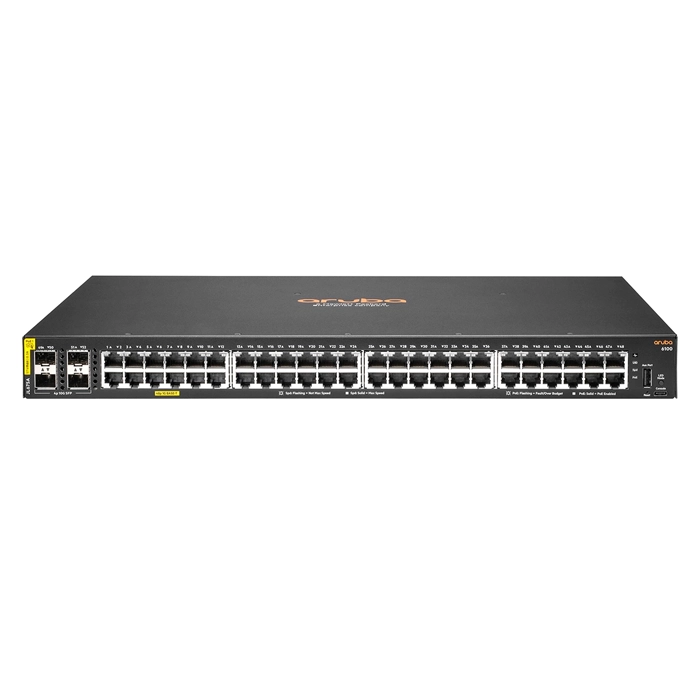

HP JL675-61101 | Aruba CX 6100 Series 6100 48G Class4 PoE 4SFP+ 370W 48 x 1000Base-T RJ-45 Class 4 PoE and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
$2,855.46
$2,712.69Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL675-61101 | Aruba CX 6100 Series 6100 48G Class4 PoE 4SFP+ 370W 48 x 1000Base-T RJ-45 Class 4 PoE and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
- HP Aruba CX 6100 48G Class4 PoE 4SFP+ 370W (JL675-61101) is the switch IT teams supporting enterprises rolling out PoE access points, IP cameras and phones across large floors often turn to when they need something that just works. It's a good match for IT teams standardizing wiring closets across a campus, schools and offices deploying wireless APs at scale, and security teams running IP camera networks that need power and data on one cable. Facilities with virtualization or NAS traffic riding the same switch will also benefit from the extra headroom. Wiring is handled by 52 total network ports, laid out as 48xGigabit EthernetRJ-45,Class4 PoE and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. With PoE on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. It also adds SFP+ expansion for uplinks. Onboard flash storage of 16 (GB) keeps firmware and config backups local to the switch. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and side-to-side airflow that lines up with typical rack airflow planning. When you order the HP Aruba CX 6100 48G Class4 PoE 4SFP+ 370W through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.
- UPC: 190017406981
Technical Documents:
General Information:
| Product Line | CX 6100 |
|---|---|
| Model | 6100 48G Class4 PoE 4SFP+ 370W |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 52 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP+ |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 16 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Side-to-Side AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 12.0 Inches |
| Weight | 5.02 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
