Image may differ from original

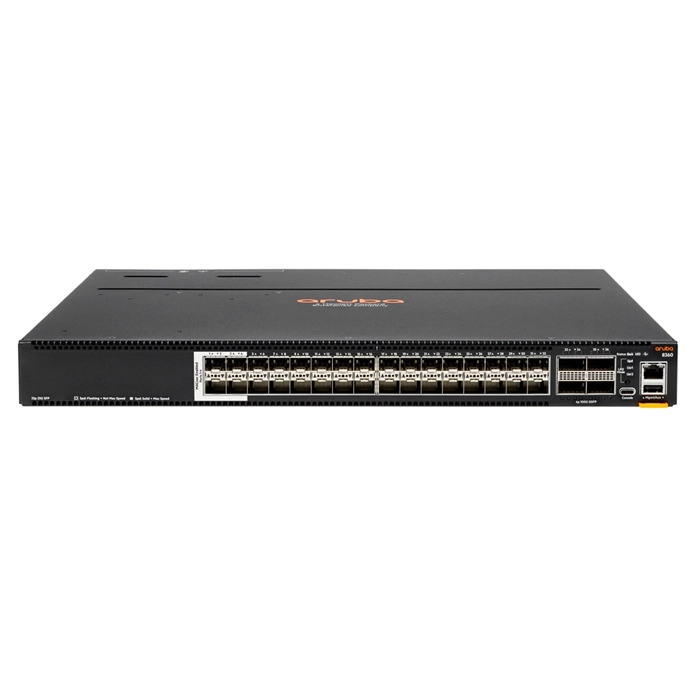

HP JL701A#ABA | Aruba CX 8360 v2 Series 8360-32Y4C v2 32 x 25GBase-X SFP28 and 4 x 100GBase-X QSFP28 Ports Layer 3 Managed Back-to-Front AirFlow Data Center Switch
$10,352.75
$9,213.95Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL701A#ABA | Aruba CX 8360 v2 Series 8360-32Y4C v2 32 x 25GBase-X SFP28 and 4 x 100GBase-X QSFP28 Ports Layer 3 Managed Back-to-Front AirFlow Data Center Switch
- HP Aruba CX 8360-32Y4C v2 (JL701A#ABA) is the switch IT teams supporting network cores and aggregation layers feeding busy server racks often turn to when they need something that just works. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. On the port side, you get 36 total network ports, laid out as 32x25 Gigabit EthernetSFP28 and 4x100 Gigabit EthernetQSFP28, topping out at 100GbE per port. It also adds QSFP28,SFP28 expansion for uplinks. Onboard flash storage of 32 (GB) keeps firmware and config backups local to the switch. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and rear-to-front airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP28,SFP28 covers both copper and fiber runs. Buy the HP Aruba CX 8360-32Y4C v2 from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
- UPC: 190017387680
Technical Documents:
General Information:
| Product Line | CX 8360 v2 |
|---|---|
| Model | 8360-32Y4C v2 |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 36 |
| Number of Expansion Slots | 36 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard | Optical Fiber |
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 32 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Rear-to-Front AirFlow |
| Height | 1.73 Inches |
| Width | 17.4 Inches |
| Depth | 16.0 Inches |
| Weight | 18.05 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
